Structural - Frameless Glass Systems

Overview

Structural Glass Assemblies also known as Suspended Assemblies or Spider Glazing Systems have high impact visually but as they are always specific design solutions do require significant engineering consideration and must still provide a high level of weathering despite contingency in the detailing.

Structural glass assemblies can be large or small - from a trophy cabinet to a 100% glass commercial structure - the use of no mechanical fittings is possible.

Thermosash, in partnership with Woods Glass, are the specialists in engineered structural glass / total vision assemblies and have completed some of the most iconic installations in New Zealand. Woods Glass utilise their extensive experience in sourcing proprietary spider fittings and often high performance over sized glass, whilst Thermosash undertake the structural engineering and manufacturing - specifically for your customised solution.

As structural glass assemblies do not have the benefit of movement joints or seismic receivers like a conventional aluminium framed curtainwall, special consideration must be given to building movement, live load deflections and environment loads such as wind and seismic.

As these types of assemblies are often installed in areas of high density people movement, ie emergency egress pathways where human safety is paramount, it is imperative that they are engineered accordingly and that the glass specified is appropriate for overhead situations.

Our in-house glass engineers are capable of helping design and engineer a solution for you and can provide Producer Statements 1 (Design), 2 (Design Review), 3 (Construction) & 4 (Construction Review) as required for client and or council compliance.

Specification

These projects are always bespoke and often complex. We suggest we review your concept early in development to assist in material selection and engineering constraints.

Surface Finishing

There are almost limitless possibilities with glass selection, performance, coloured, thickness and size range including multiple colour PVB laminate.

Performance / Testing

AS/NZS1170 (Structural Design Actions)

NZS4223 (Glazing in Buildings)

NZS/AS4284:2008 (Water / Air Pressure/ Air Leakage - Meets and exceeds minimum requirements)

Maximum Spanning Ability

Thermosash specifically engineers the best suite option for your project taking into consideration span, structural system, and environmental loads (e.g. wind). The spanning ability will vary depending on the above.

Thermosash Suites are recognized as having the largest spanning systems on the market due to our specific engineering capability and the customised nature of the work we complete.

Warranty

The standard warranty is 5 years from the date of practical completion for these products. This covers workmanship and weather tightness, providing the subcontract includes fabrication, installation and glazing of all components.

Contact us to discuss your project needs.

Read more Read less

System Features

  • An extremely flexible design medium - your concept can be realised in glass.
  • Frameless entrances to entire fitting-free glass structures.
  • Thermosash offer the full service of consulting, engineering, procurement of special glass or fittings, manufacturing and installation.

Relevant Products/Suites

Relevant Projects

Telstra Clear Building - Smales Farm

Telstra Clear Building - Smales Farm

Auckland

Warren & Mahoney

Arrow International

2001

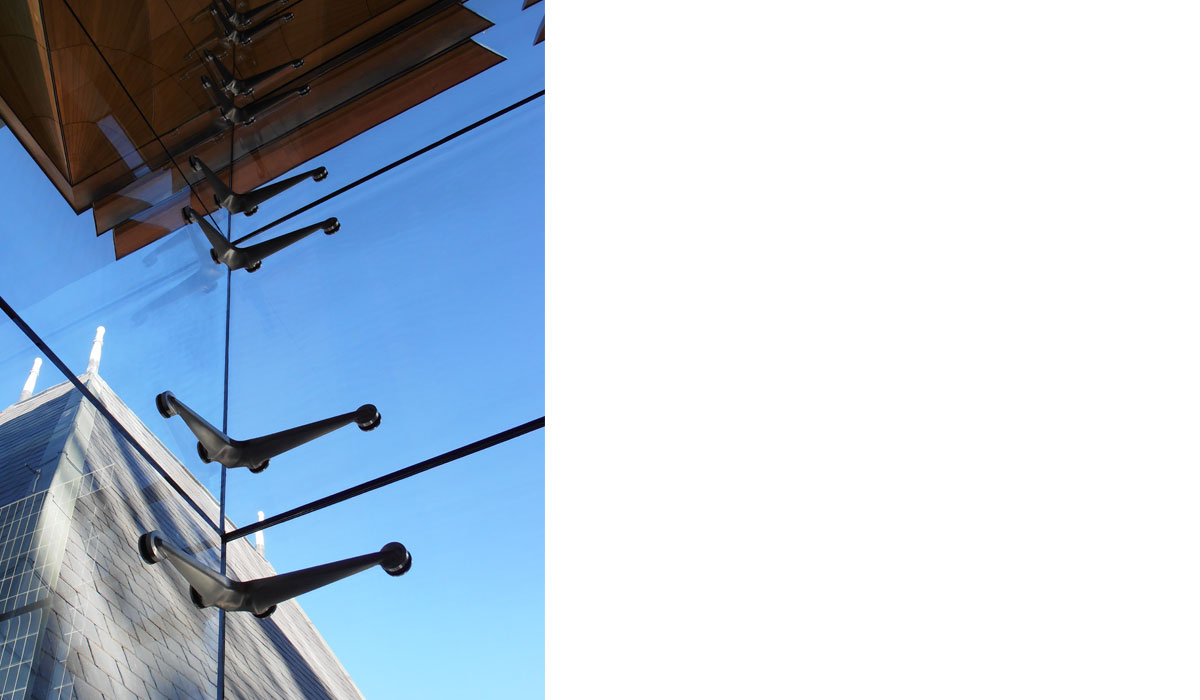

Auckland Art Gallery

Auckland Art Gallery

Auckland

FJMT and Archimedia

Hawkins Construction

2011

ASB - North Wharf

ASB - North Wharf

Auckland

Jasmax, BVN

Fletcher Construction

2013

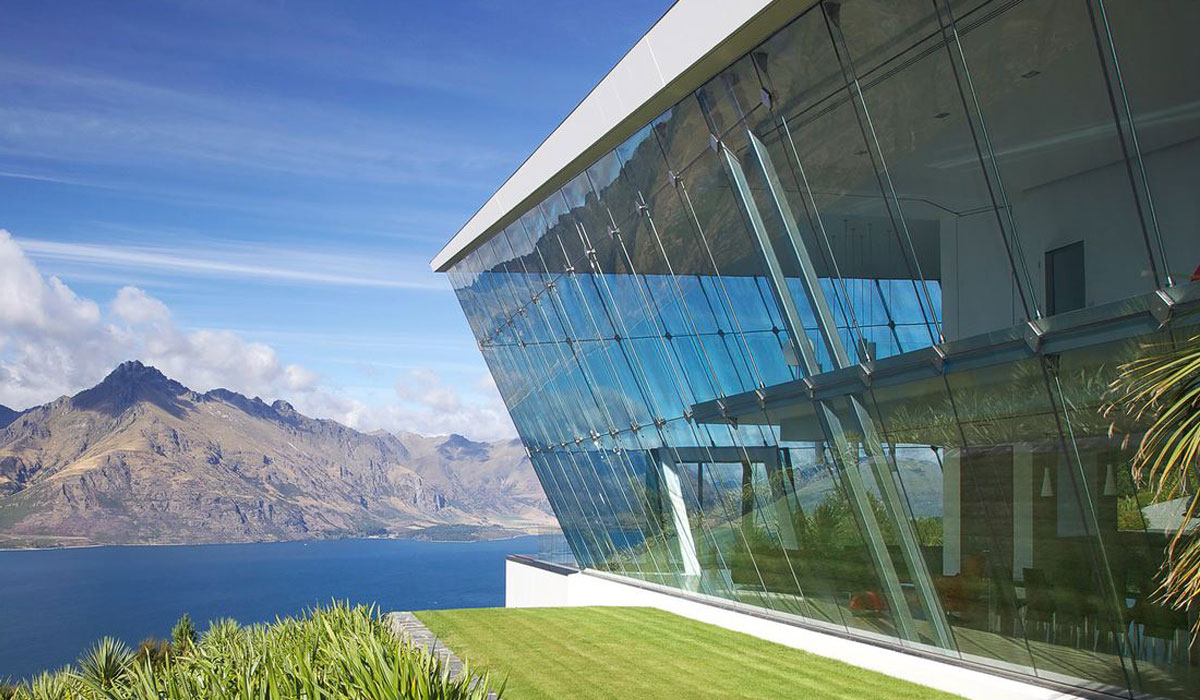

Jagged Edge
