Thermally Broken

DS-70TB Slider

DS 70TB PW400TB Sliding Stacking Door (1)

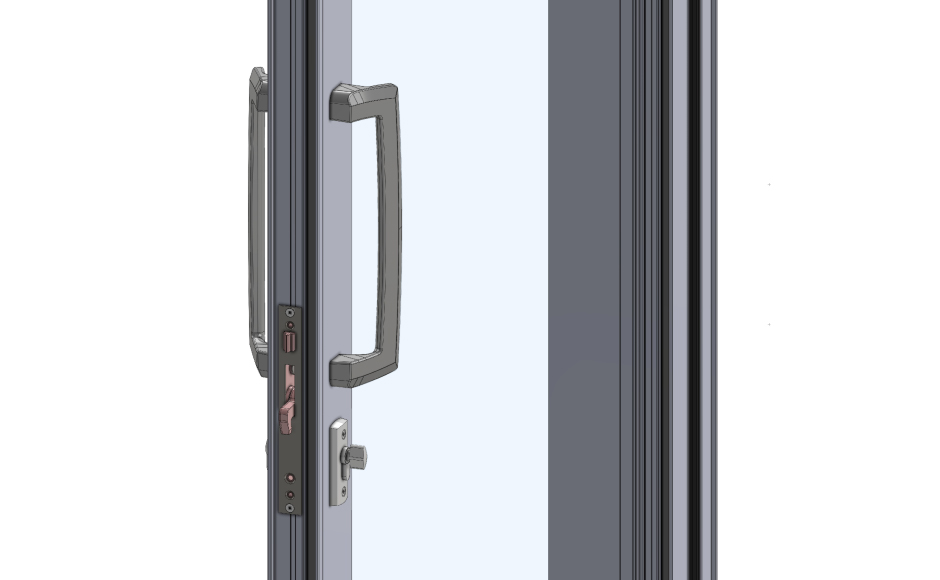

DS 70TB PW400TB Sliding Stacking Door 02

Product Description

The DS-70TB sliding & stacking door with thermally broken aluminium frames and integrated IGU glazing, designed for commercial and multi-storey residential use.

Frame depth:

54mm

Glass thickness:

Up to 39mm IGUs

Functionality:

Parting: Left / Right / Stacking / Bi-parting

Integration:

Overlight - fixed glazing / fully integrates with Thermosash suite PW400TB 160mm mullions

Fabrication

Prefabricated locally in New Zealand by Thermosash. Specify our DecarbALTM aluminium if your project requires a low carbon footprint that significantly outperforms readily available alternatives. Thermosash has access to suppliers of low carbon high performance glazing for an integrated solution.

Maximum span

The spanning ability will vary depending on the structural system and environmental loads (e.g. wind). Thermosash specifically engineers the best suite options to meet project and environmental requirements.

Performance code compliance

  • AS/NZS1170 (Structural Design Actions)
  • NZS4211 (Performance of Windows)
  • NZS4223 (Glazing in Buildings)
  • AS/NZS 4284:2008 (Water / Air Pressure/ Air Leakage):

Thermal performance

Thermal modelling resulted in insulation performance R-values of:

    • R0.53 (high-end glass IGU R1.1)

Engineering

We custom design all our suites to suit each project to maximise the efficiencies within the suite and often to incorporate added elements or unique building structures, building movements or floor heights.

Warranty

The standard warranty is 10 years from the date of practical completion for these products. This covers workmanship and weather tightness, providing the subcontract includes fabrication, installation and glazing of all components, and the maintenance schedule is adhered to.

Maintenance

It is recommended by almost all material suppliers that building washing should occur every 3-6 months to prevent staining to glass and prevent environmental pollutants from corroding metals and to maintain the material warranties.

A full maintenance manual is provided on completion of a project for all the elements integrated within a project. Compliance to a maintenance schedule is essential to maintaining the quality of the installed product over time. Using Thermosash-approved facade maintenance contractor/personnel ensures the highest standards are met.

Read more Read less

Key Features

  • Sliding, stacking and bi-parting doors with two or four glazed panels and thermally efficient frame
  • Can be integrated with over light - fixed glazing
  • Maximum IGU thickness 39mm
  • Weathertight
  • Proprietary polyamide track system for lighter panels and stainless-steel track system for heavy panels
  • Opening and closing doorstops prevents damage when slider movement is too rapid.

Specification

Please contact Thermosash

Finishes

  • Polyester powdercoat - both standard and special colours available
  • Anodised - all anodised colours available - commercial grade 20 Micron finish recommended
  • PVF2 Fluorocarbon finishes - available on request
