MAL-100D

mechanical air louvre 100mm double bank

Product Description

The Thermosash high performance 100mm double bank mechanical louvre systems integrate into the Thermosash range of curtainwall and commercial window systems for façade integrated mechanical air inlet and extract requirements. These louvres are commonly specified as fresh air inlets for mechanical plant and mechanical plant screening. Double banks will offer a greater degree of weather proofing than single banks.

Product Type: MAL-100D  |  [Type 6]

Profile Section

Section Sizes

  • double-bank 100mm

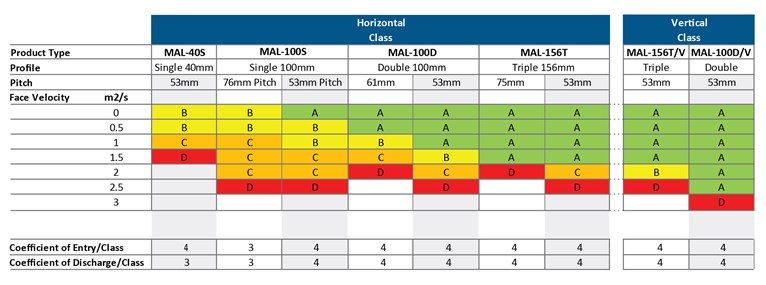

Performance / Testing

  • BS EN 13030:2001

Maximum Spanning Ability

The spanning ability will vary depending on span required, structural system, and environmental loads (e.g. wind). Thermosash specifically engineers the best design options for your project.

Variation to basic design

  • Extended sill
  • Insulated backpan for plenum attachment
  • Hinged frame
  • Front and rear security bars
  • Filter racks
  • A variety of vermin / bird / insect screens to all louvre types

Integrated Elements

Thermosash Mechanical Air Louvres integrate into the Thermosash range of curtainwall and Commercial window and doors systems.

Low-Carbon Aluminium

Thermosash partners with a local NZ-owned extruder achieving a lower carbon footprint than the global average - offering reduced upfront carbon emissions. (find out more about our Sustainable Aluminium).

Thermosash manufacture all of our own façade components in New Zealand, and primarily source materials were available from the New Zealand market to reduce transport distances and emissions from freight. We recycle 100% of all our metal waste.

Warranty

10 years from the date of practical completion.
Min 5 years for design, engineering, quality of materials, fabrication, installation and performance.
Warranty is provided in the form of a site-specific producer statement (PS3 Construction).

Warranty commences from the date of practical completion of the contract works.
All warranties are subject to service and maintenance requirements.

Maintenance

It is recommended by almost all material suppliers that building washing should occur every 3-6 months to prevent staining to glass and prevent environmental pollutants from corroding metals and to maintain the material warranties.

A full maintenance manual is provided on completion of a project for all the elements integrated within a project. Compliance to a maintenance schedule is essential to maintaining the quality of the installed product over time. Using Thermosash-approved facade maintenance contractor/personnel ensures the highest standards are met.

Read more Read less

Key Features

  • Performance Classification BS EN 13030:2001
  • High performance frame system with drainable frame, collects and removes water
  • Architecturally styled hidden mullions allowing continuous line appearance, span varies based on site wind load and blade selection.
  • Aluminium powdercoated / anodised construction for low maintenance and high corrosion resistance
  • Seamless integration with Thermosash systems

Brochures

Thermosash Mechanical Air Louvres Product Disclosure - documents package

2023

Thermosash Mechanical Air Louvres - Brochure

May 2024

Specification

Due to the potential unique and high performance design requirements, a bespoke specification will be created by a mechanical or facade engineer consultant.

When integrated with Thermosash suites and referencing the inclusion we recommend using Masterpec 4211TS Curtainwalls and 4521TS Commercial Windows.

Please call us to discuss your project early in conceptual development.

NB: Specify Double or triple bank - when a greater degree of weathering proofing is required.

Finishes

  • Extrusions are high performance polyester powdercoated or anodised, prior to manufacturing.
  • Polyester powder organic coating in accordance with WGANZ PQAS and AS 3715, and AAMA 2604.

Relevant Projects

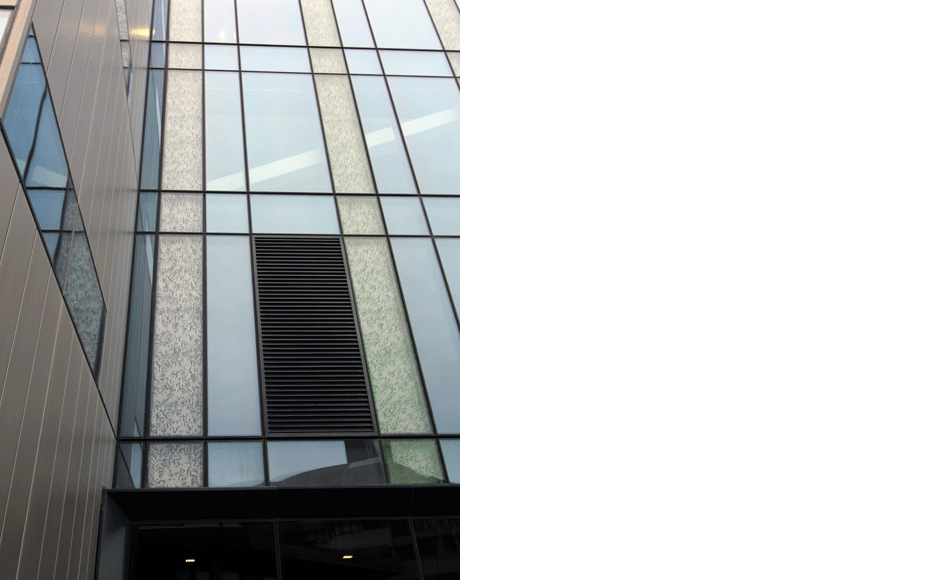

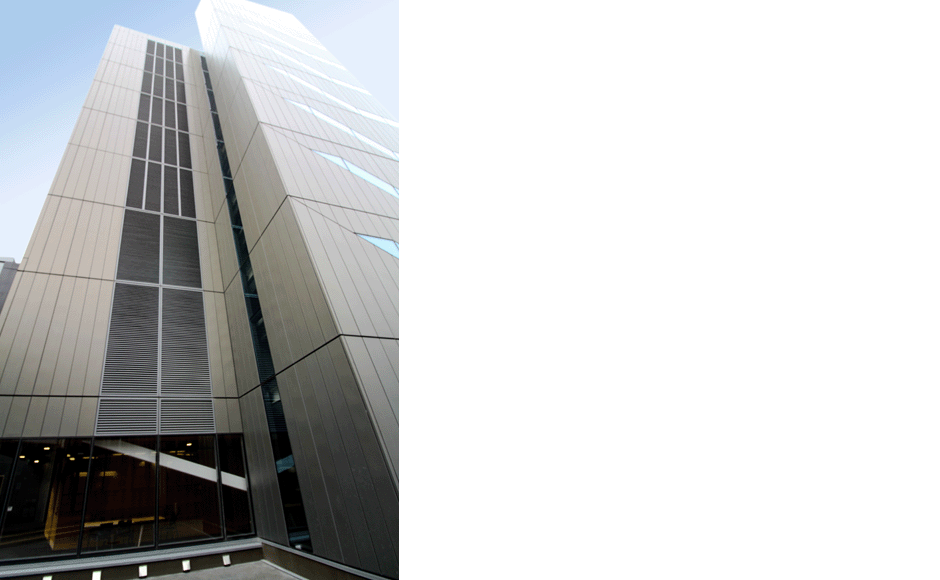

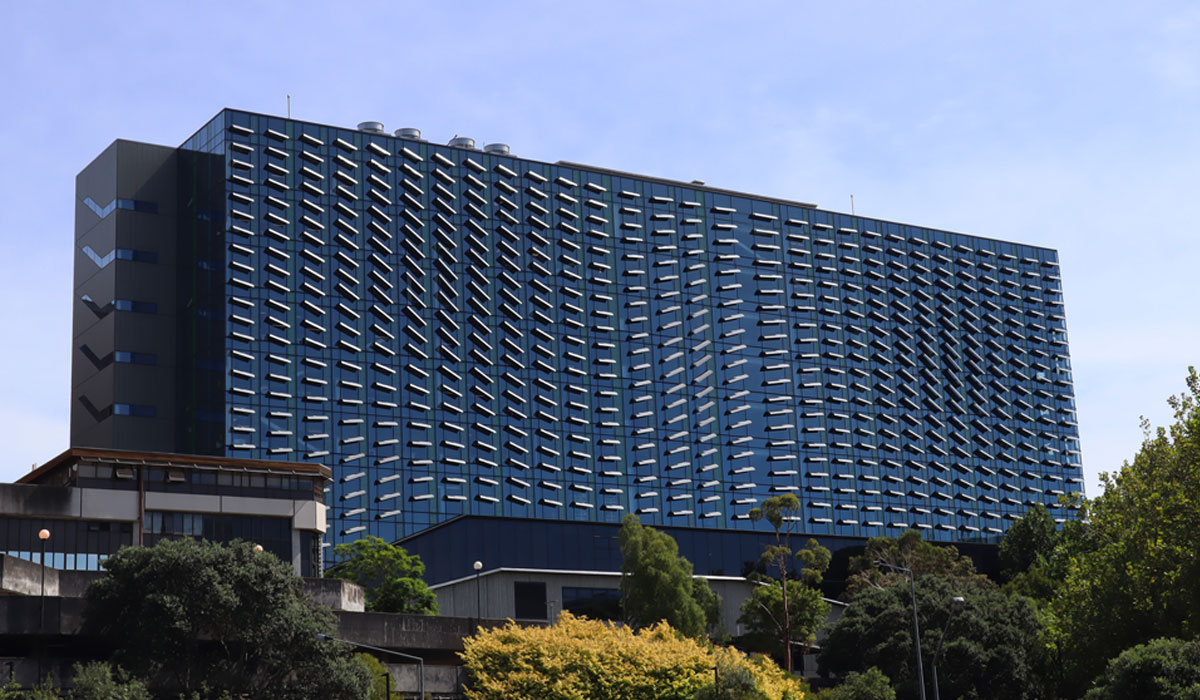

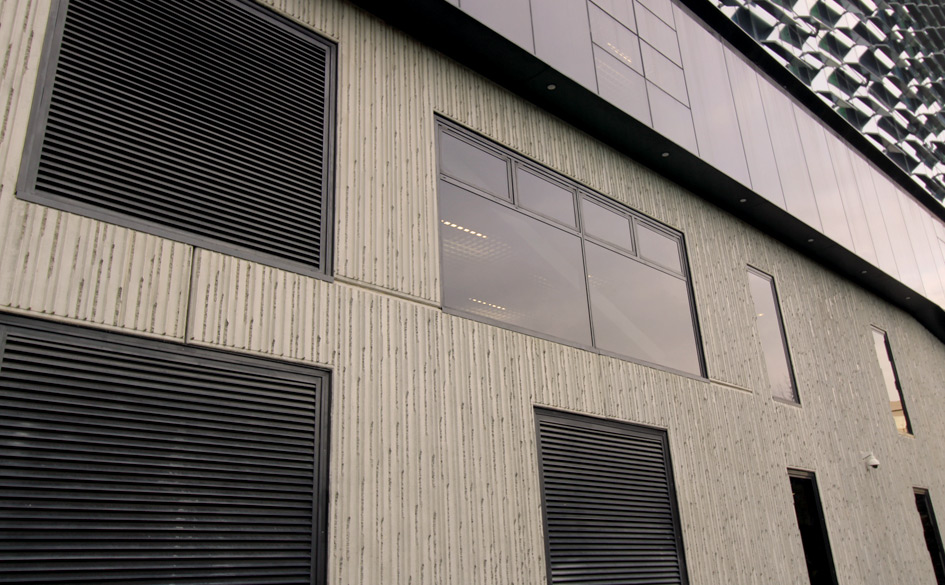

UOA Engineering - 405
