PW40

CAD Downloads

Let's talk about your next project

Auckland

Wellington

Christchurch

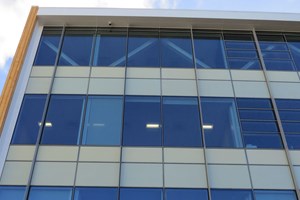

The Thermosash PW40 is a four sided mechanically glazed engaged curtainwall, that is; expressed horizontal transom elements and vertcal mullion elements.

PW40 - 100mm Mullion Single Glazed

Download files

pdf pdf
dwg dwg
dxf dxf

PW40 - 100mm Mullion Double Glazed

Download files

pdf pdf
dwg dwg
dxf dxf

PW40 - 100mm Mullion Fixing Bracket - Slab Top Mount

Download files

pdf pdf
dwg dwg
dxf dxf

Thermosash Curtain Wall Fixing Bracket

Download files

pdf pdf
dwg dwg
dxf dxf

Specification

We recommend using Masterspec 4211TS Curtainwall when specifying this suite.

Finishes

Polyester powdercoat - both standard and special colours available
Anodised - all anodised colours available - commercial grade 20 Micron finish recommended
PVF2 Fluorocarbon finishes - available on request
