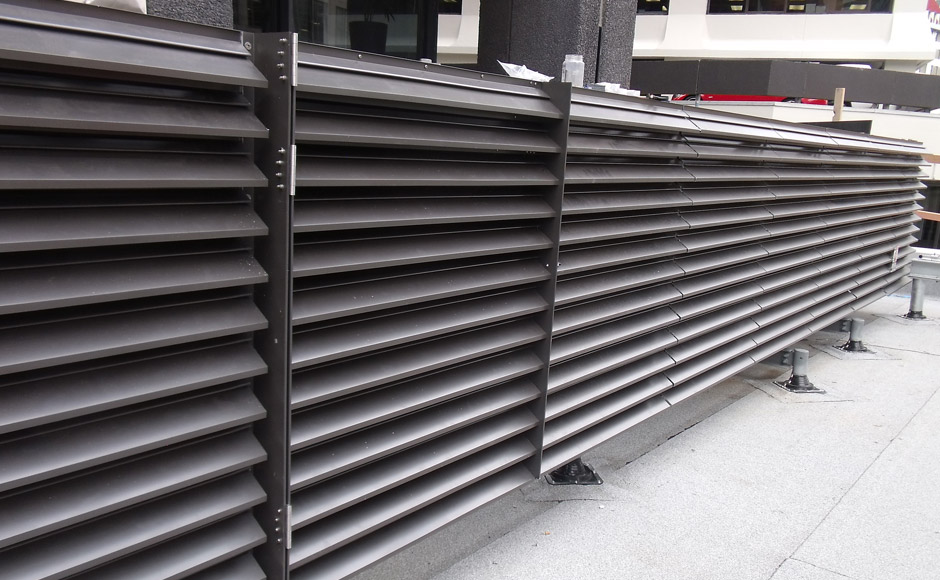

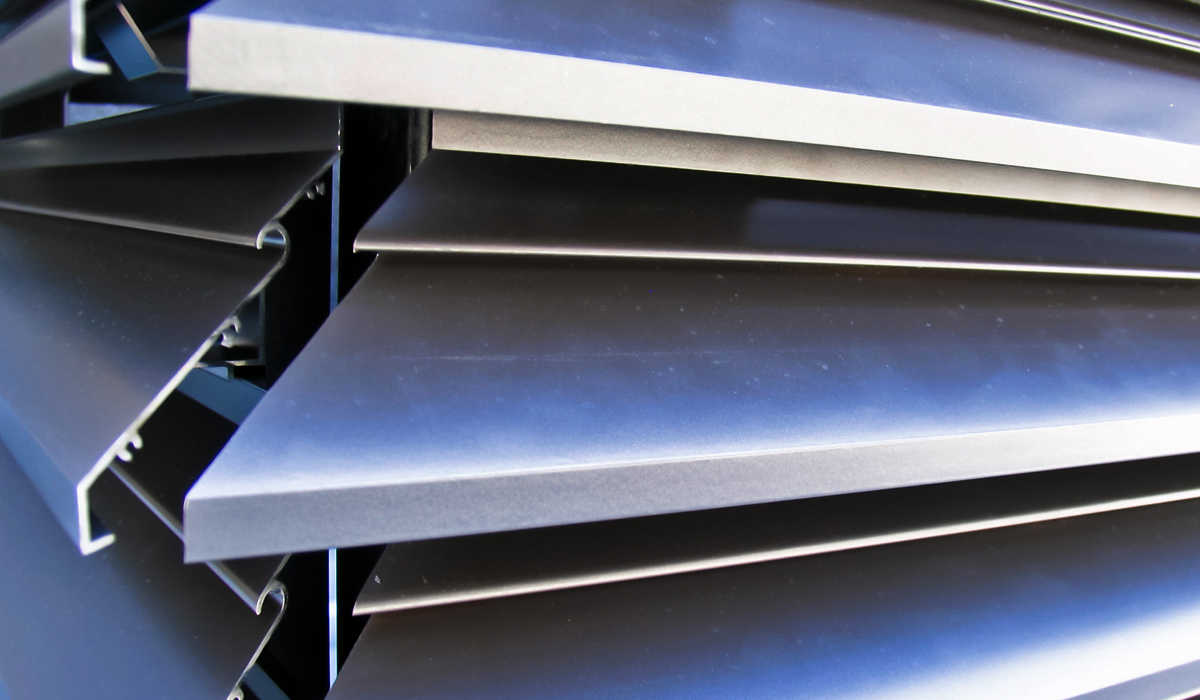

The Thermosash high performance 100mm single bank mechanical air louvre systems integrate into the Thermosash range of curtainwall and commercial window systems for façade mechanical air inlet and extract requirements. These louvres are commonly specified as fresh air inlets for mechanical plant and mechanical plant screening. The single bank louvres are not waterproof and will not offer a dry environment within the clad space.

Product: MAL-100S  |  [Type 1]

Profile Section:

Section Sizes

• Single-bank 100mm

Variation to basic design

• Extended sill
• Insulated backpan for plenum attachment
• Hinged frame
• Front and rear security bars
• Filter racks variety of vermin / bird / insect screens to all louvre types

Performance / Testing

• BS EN 13030:2001*

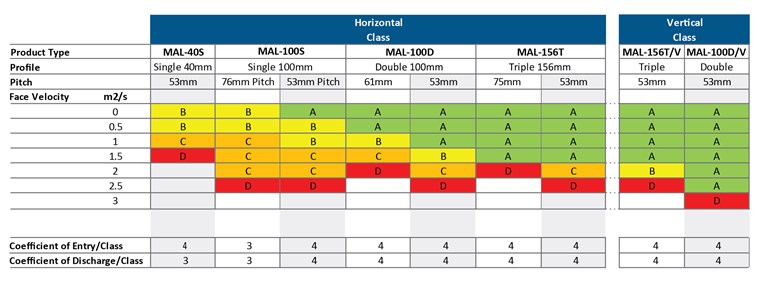

Weathering data - performance tested

_{*BS EN 13030:2001 is a European standard specifying a method for measuring performance of louvres subjected to simulated rain and wind pressures, with and without airflow through the louvre under test.
Face Velocity - resistance to ingress of rain Classes A - D (classes indicate highest water resistance to least water resistance).
Coefficient entry / discharge - resistance to airflow Classes 1 - 4 (classes indicate least air resistance to highest air resistance).}

Maximum Spanning Ability

The spanning ability will vary depending on span required, structural system, and environmental loads (e.g. wind). Thermosash specifically engineers the best design options for your project.
