MAL-40S

mechanical air louvre 40mm single bank

Let's talk about your next project

Auckland

Wellington

Christchurch

Brisbane

St Cuthberts School Centennial Pool Door

UOA Engineering 405 MAL 40Mm Singl Bnk (Type7)

Product Description

The Thermosash high performance 40mm single bank mechanical louvre system designed to integrate into aluminium doors. These louvres are commonly specified as fresh air inlets for mechanical plant and mechanical plant screening. Single bank louvres are not waterproof, and when outdoors, will not offer a dry environment within the clad space.

Product: MAL-40S | [Type 7]

Profile Section:

Section Sizes

Single-bank 40mm

Integrated Elements

Vermin / insect guards can be integrated into this single bank louvre type.

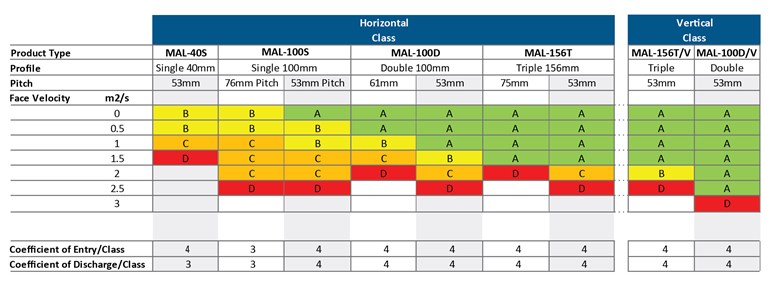

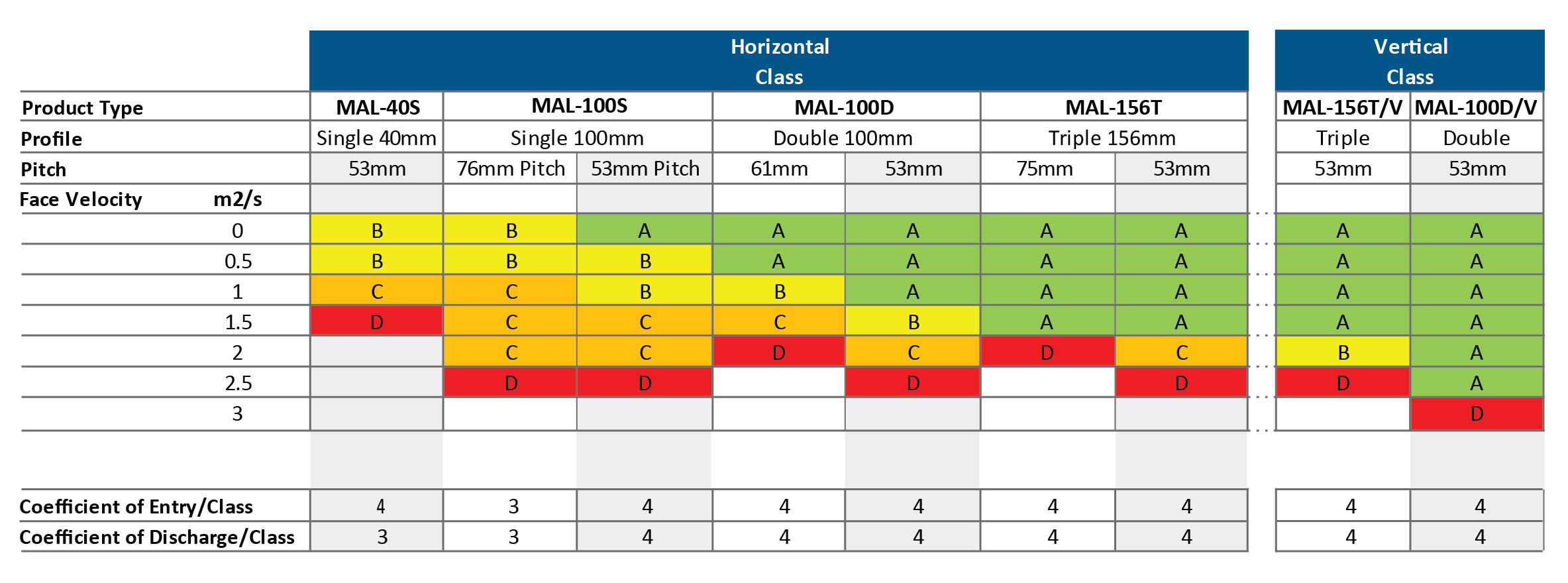

Weathering data - performance tested

Performance / Testing

BS EN 13030:2001*

^{*BS EN 13030:2001 is a European standard specifying a method for measuring performance of louvres subjected to simulated rain and wind pressures, with and without airflow through the louvre under test. Face Velocity - resistance to ingress of rain Classes A - D (classes indicate highest water resistance to least water resistance). Coefficient entry / discharge - resistance to airflow Classes 1 - 4 (classes indicate least air resistance to highest air resistance).}

Maximum Spanning Ability

The spanning ability will vary depending on span required, structural system, and environmental loads (e.g. wind). Thermosash specifically engineers the best design options for your project.

Low carbon aluminium - specify Thermosash Decarbal^TM

Our Thermosash Decarbal^TM aluminium achieves a very low carbon footprint that significantly outperforms readily available local & global alternatives - offering reduced upfront carbon emissions that positively contribute to sustainability project goals. For up-to-date carbon figures please contact us. Find out more about our Sustainable Aluminium.

Warranty

10 years from the date of practical completion.
Min 5 years for design, engineering, quality of materials, fabrication, installation and performance.
Warranty is provided in the form of a site-specific producer statement (PS3 Construction).

Warranty commences from the date of practical completion of the contract works.
All warranties are subject to service and maintenance requirements.

Maintenance

It is recommended by almost all material suppliers that building washing should occur every 3-6 months to prevent staining to glass and prevent environmental pollutants from corroding metals and to maintain the material warranties.

A full maintenance manual is provided on completion of a project for all the elements integrated within a project. Compliance to a maintenance schedule is essential to maintaining the quality of the installed product over time. Using Thermosash-approved facade maintenance contractor/personnel ensures the highest standards are met.

Key Features

Performance Classification BS EN 13030:2001
High performance frame system with drainable frame, collects and removes water
Architecturally styled hidden mullions allowing continuous line appearance, span varies based on site wind load and blade selection.
Aluminium powdercoated / anodised construction for low maintenance and high corrosion resistance
Seamless integration with Thermosash systems

Brochures

Thermosash Mechanical Air Louvres Product Disclosure - documents package

2026

Thermosash Mechanical Air Louvres - Brochure

September 2025

Specification

Note that due to the potential unique and high-performance design requirements, a bespoke specification will be created by a mechanical or facade engineer consultant.

When integrated with Thermosash suites and referencing the inclusion we recommend Masterspec 4521TS Thermosash Commercial Windows & Doors

Please contact us to discuss your project early in conceptual development.

Specify double or triple bank - when a greater degree of weather proofing is required.

Finishes

Extrusions are high performance polyester powdercoated or anodised, prior to manufacturing.
Polyester powder organic coating in accordance with WGANZ PQAS and AS 3715, and AAMA 2604.
