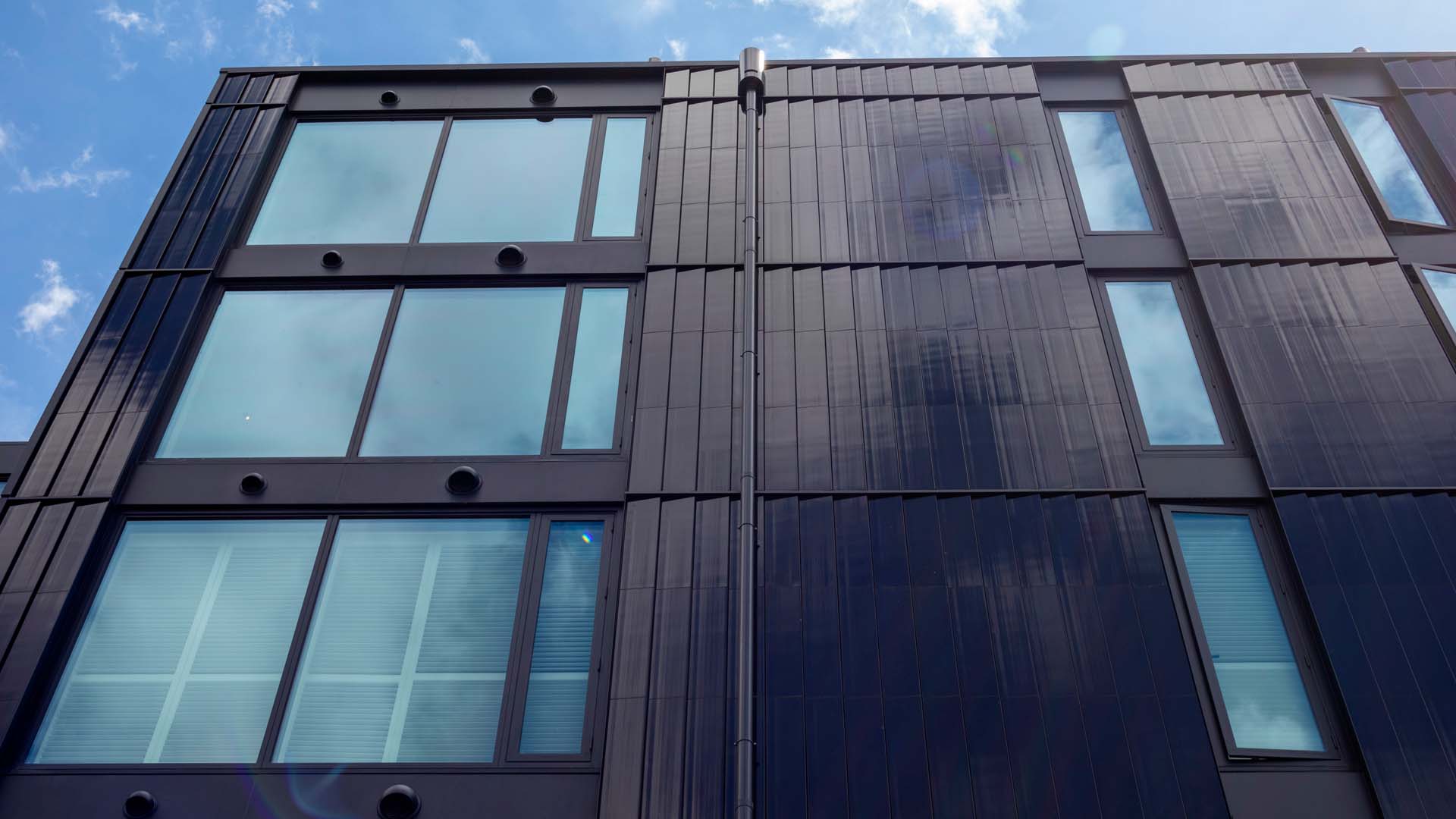

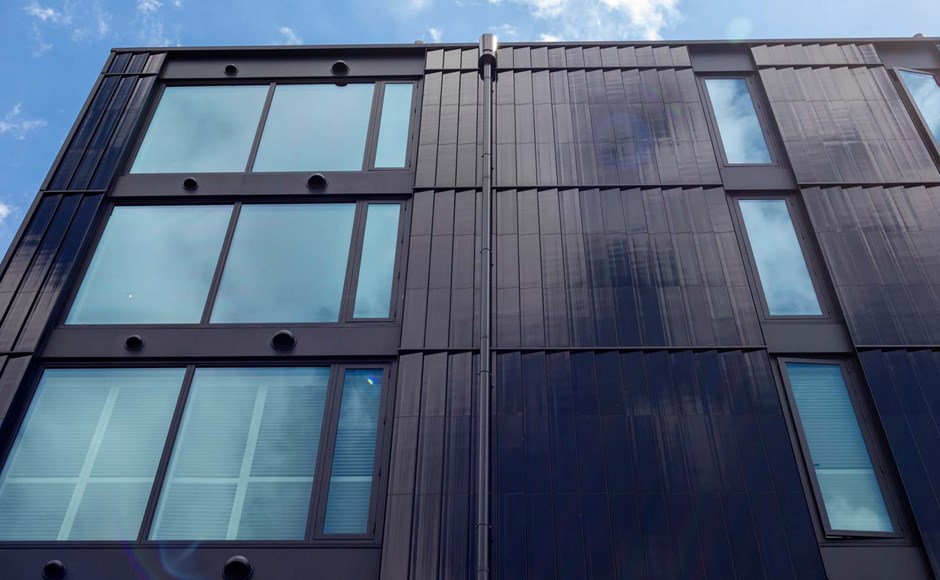

St Stephens Terracotta Rainscreen
EN02 Hook On Secret Fix
EN03 Hook On Secret Fix (1)

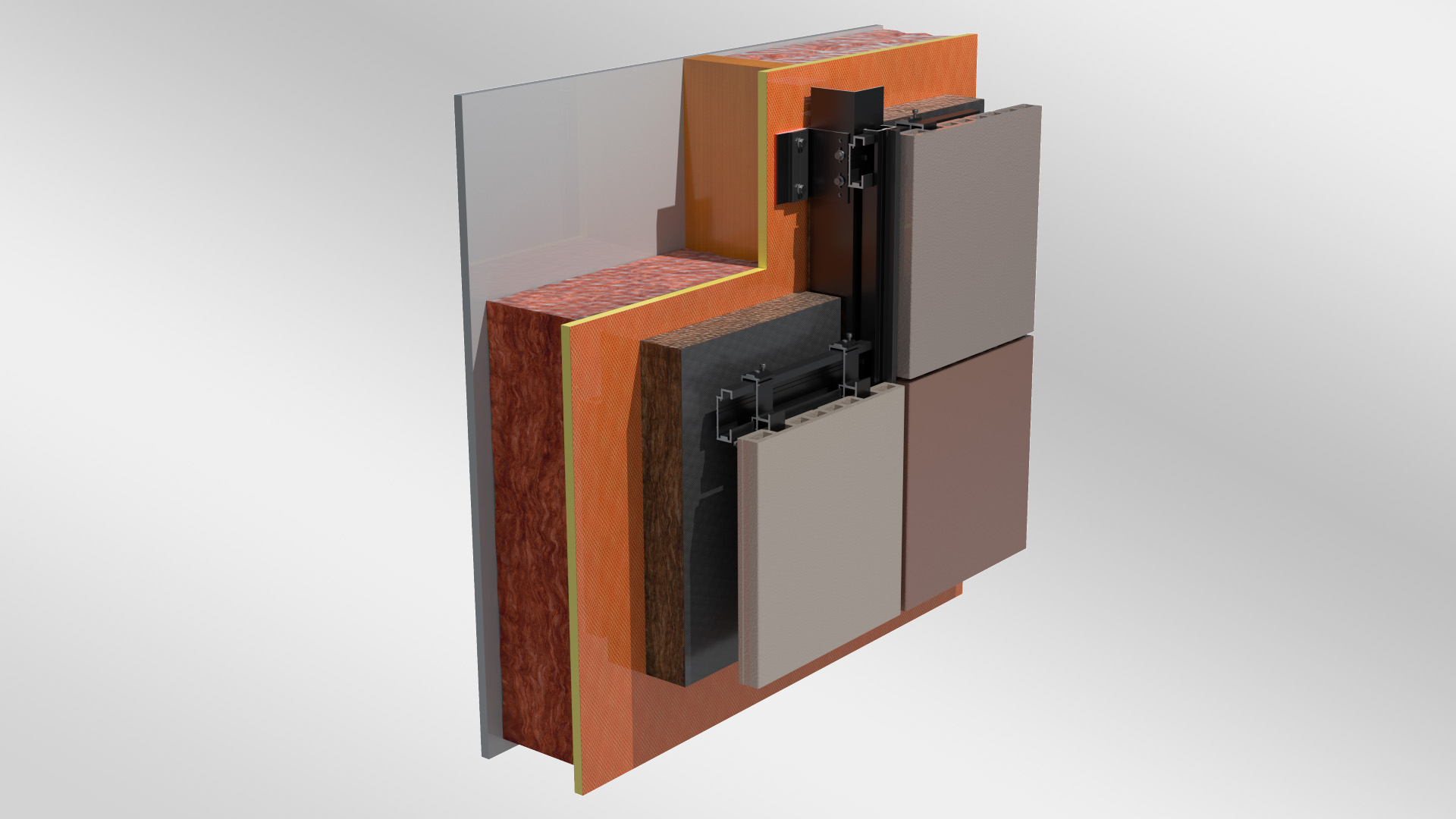

Terracotta 3D

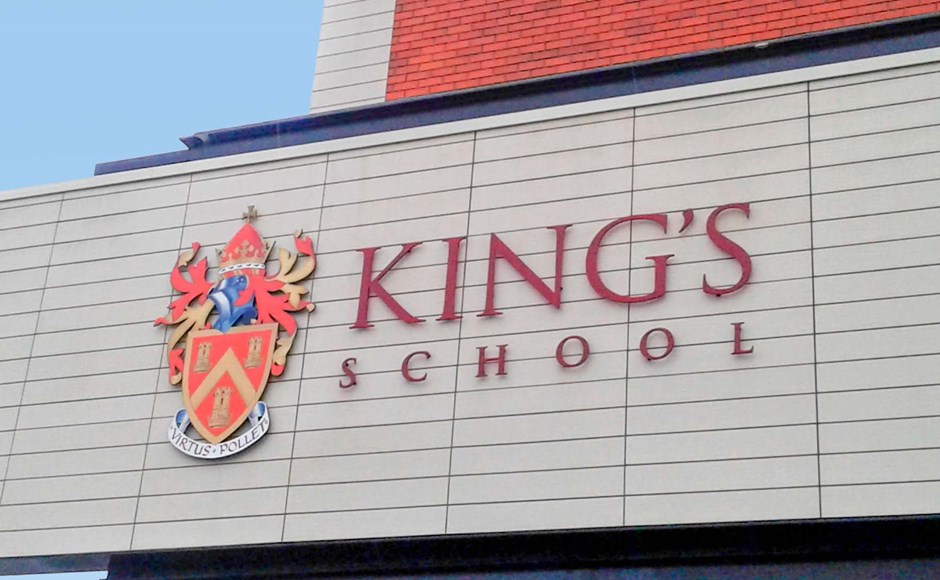

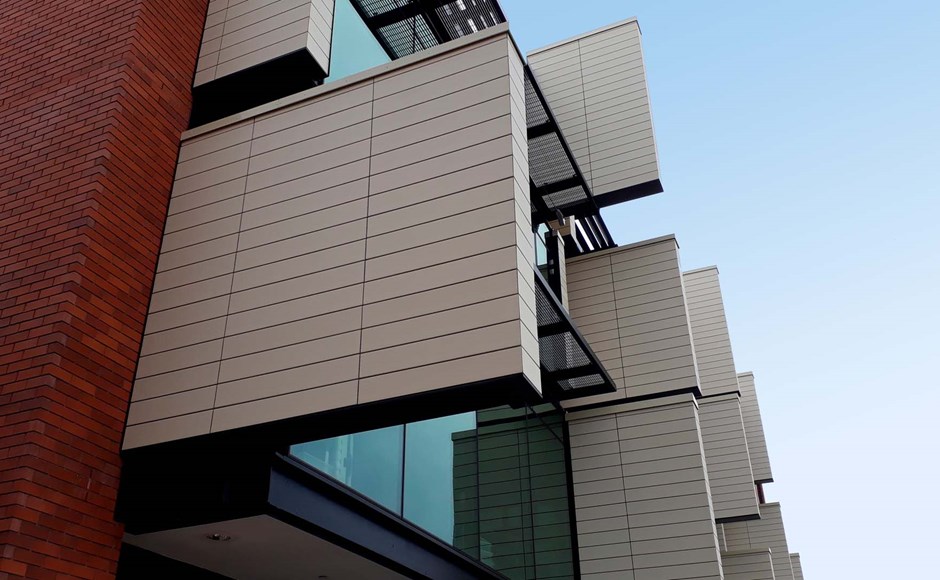

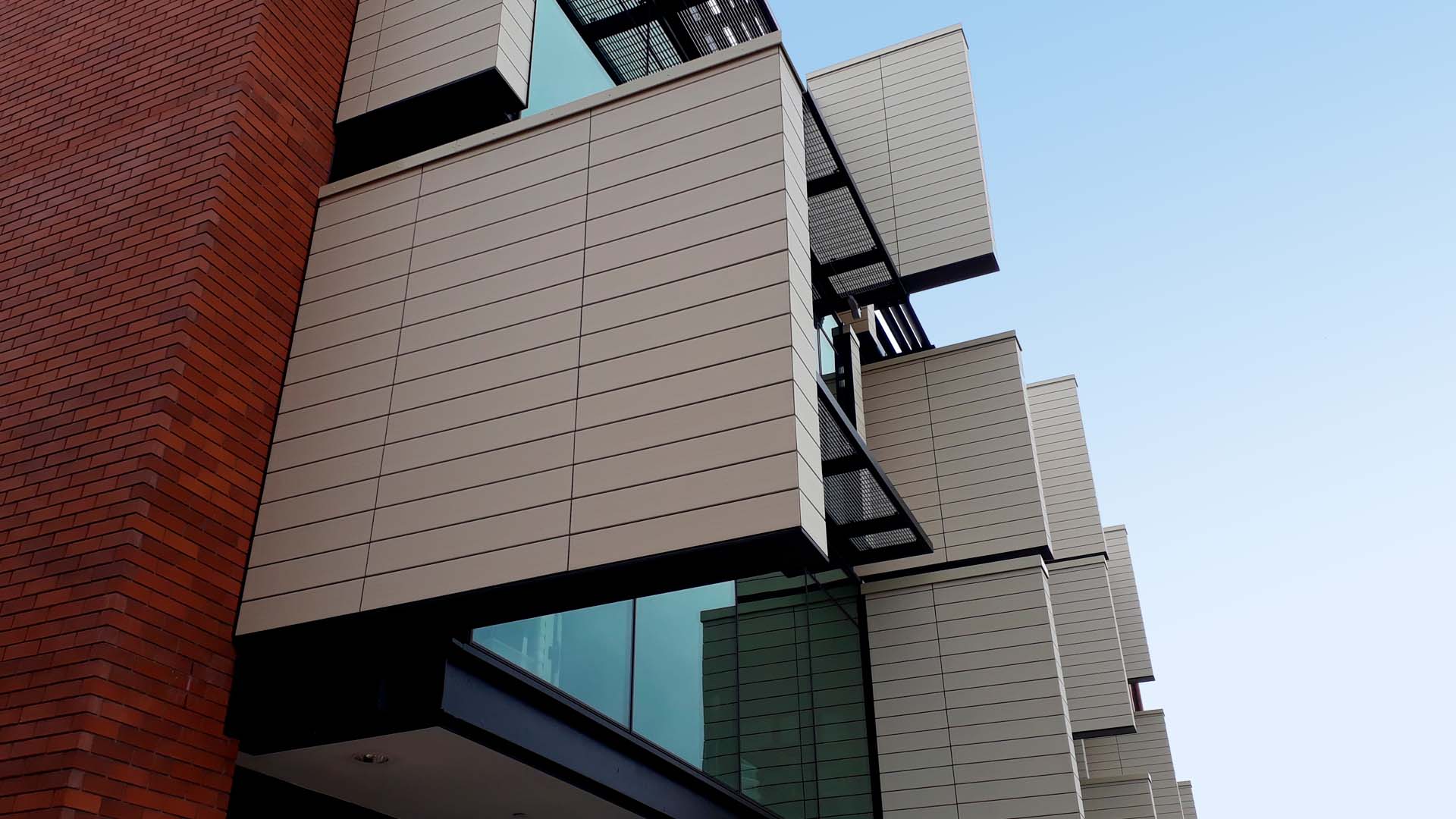

Kings School Terracotta 01

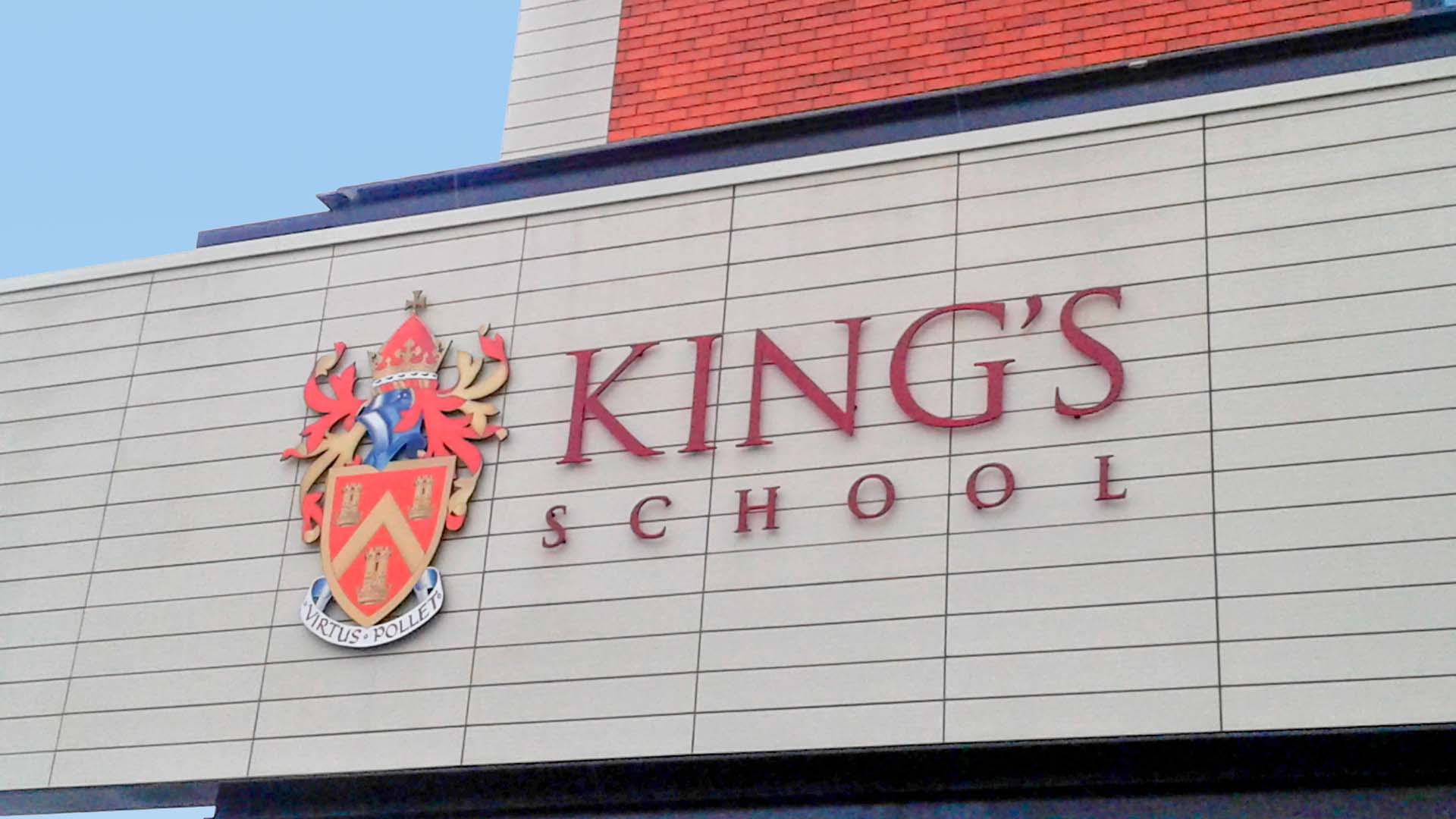

Kings School Terracotta 02

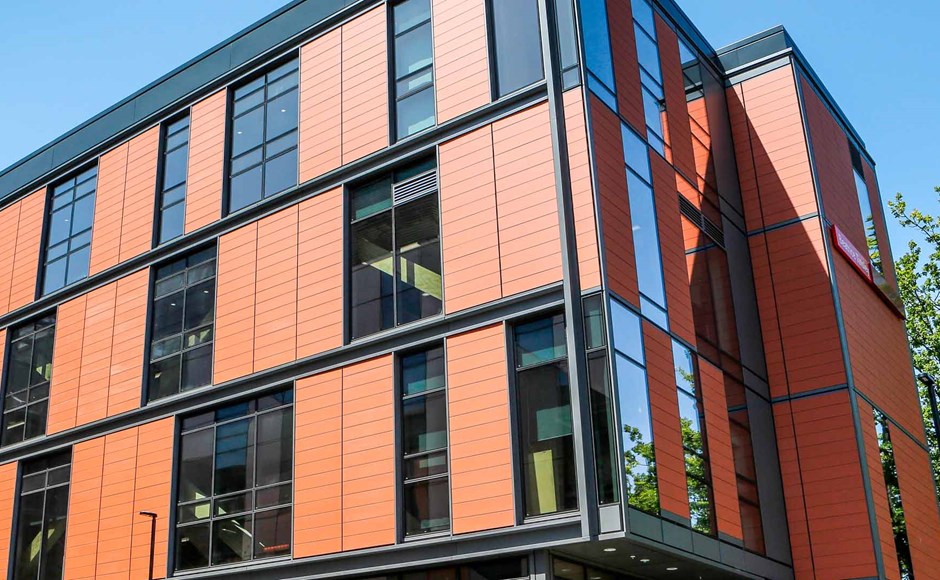

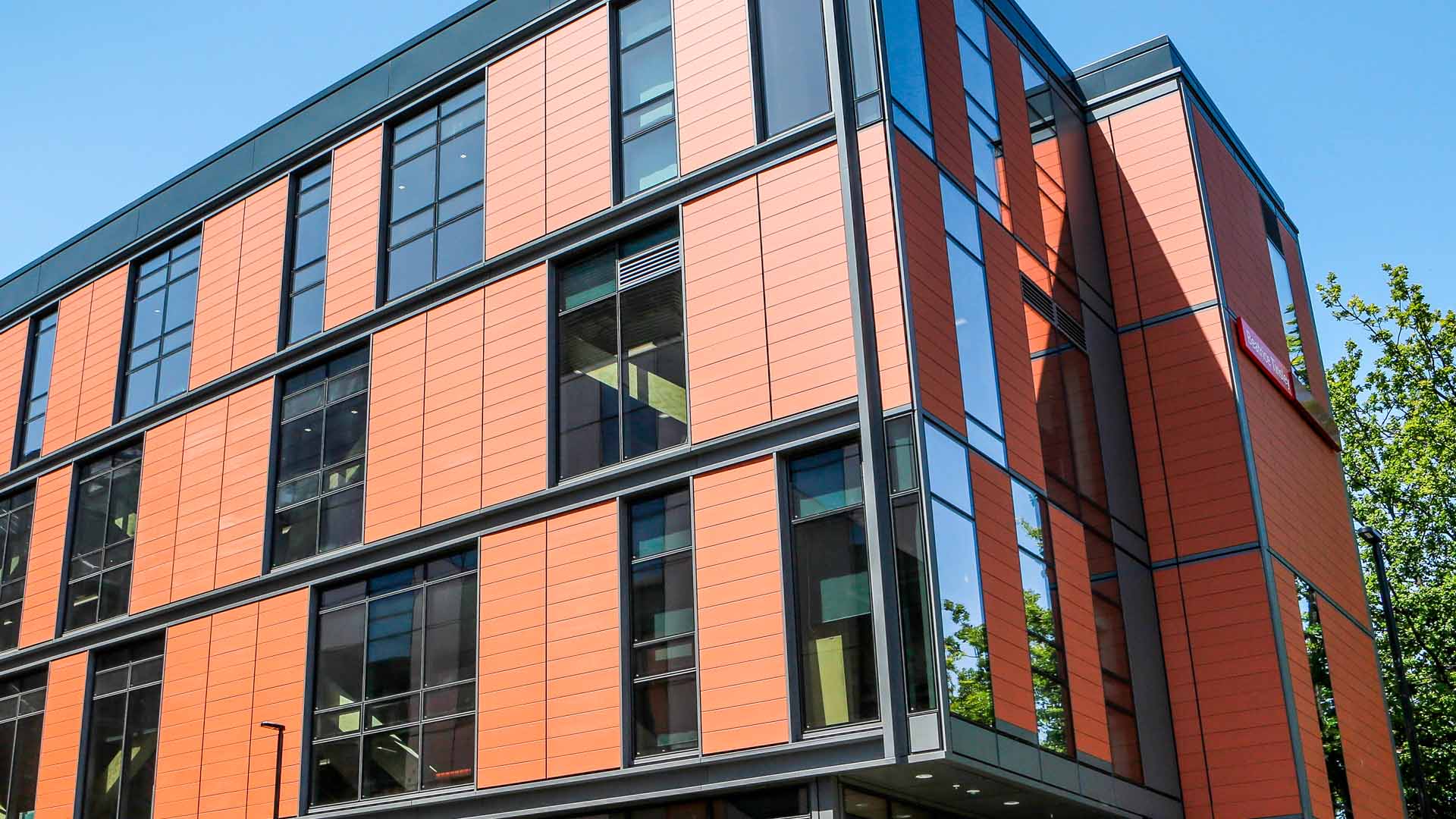

Beatrice Tinsley UOC Terracotta

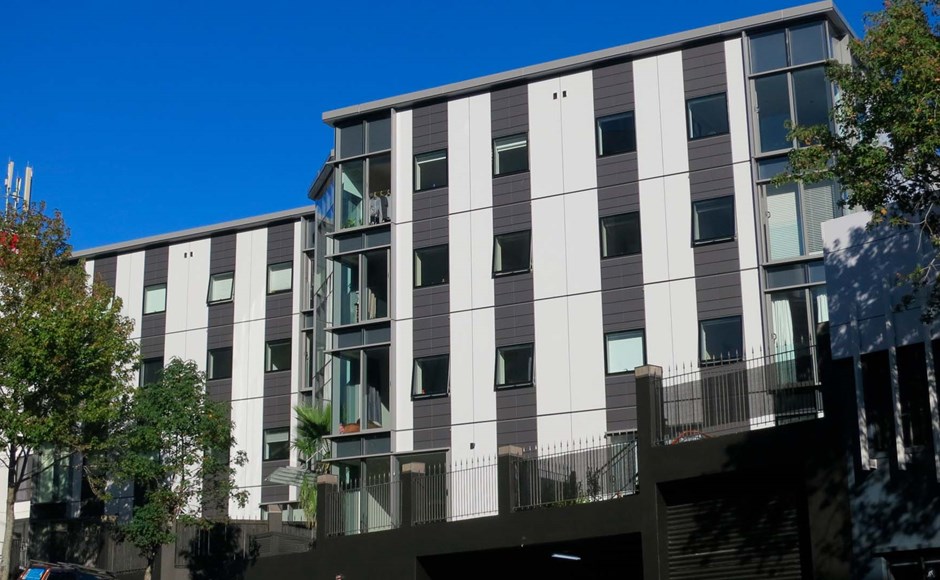

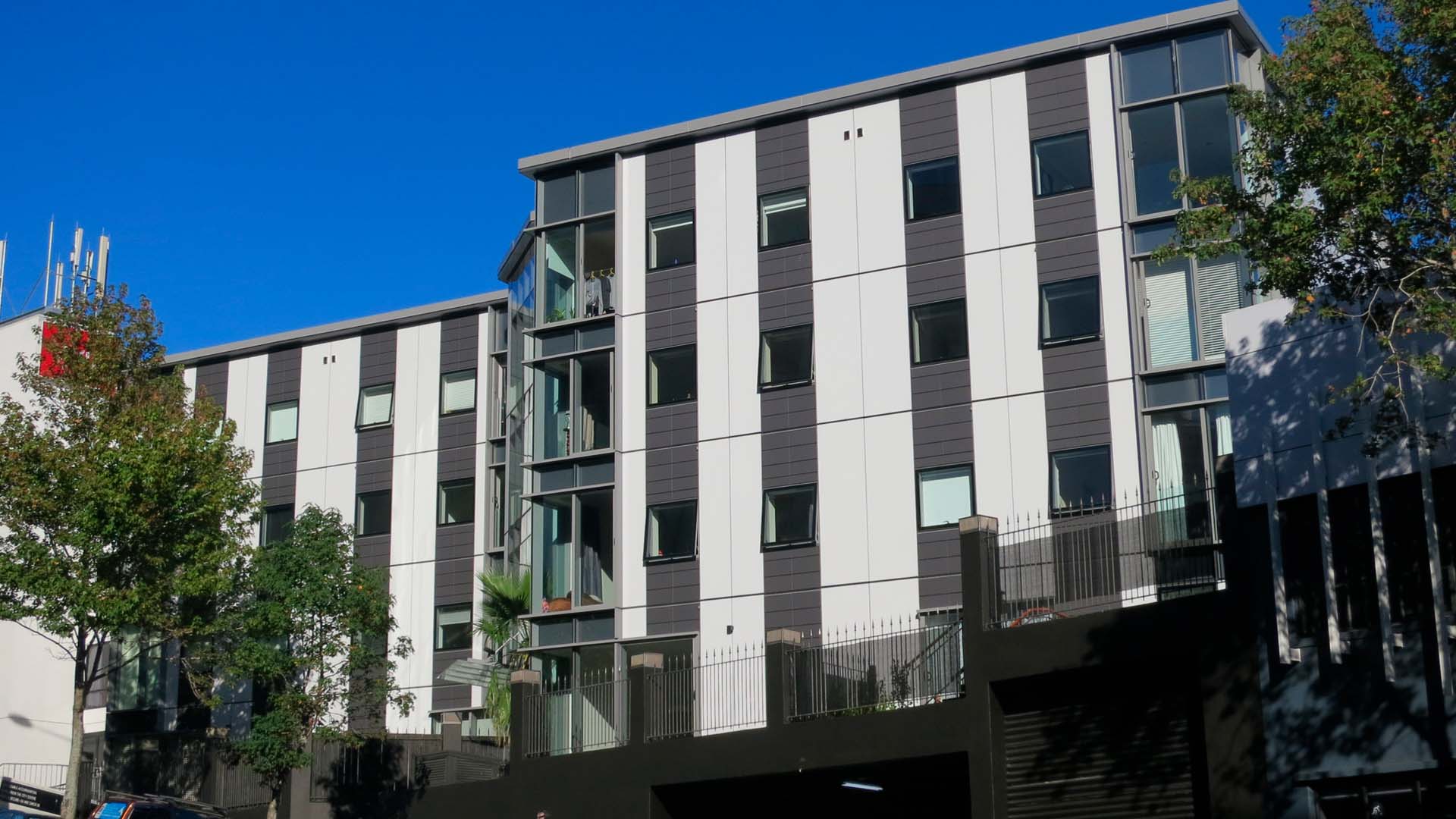

Columbia Apartments Terracotta

Product Description

Terracotta Panels are usually made of weathered clay, extruded from vacuum chambers and fired in high-temperature roller kilns. Terracotta panels are known for design flexibility, durability and sustainability, providing a resilient low maintenance facade solution.

The tiles are available in various sizes, colours and profiles and can be fixed with our ENCLAD™ support rail system engineered by Thermosash with interlocking brackets that ensure the tiles do not dislodge during extreme building movement or high winds.

Terracotta can also be incorporated into a Thermosash unitised cladding system, enabling a higher level of productivity on site via prefabricated factory assembled panels.

ENCLAD™ is Thermosash’s proprietary range of bracket profiles engineered specifically to support various types of rainscreen cladding. We have expert in-house teams working to ensure the design, engineering, procurement, fabrication and installation of our solutions deliver on custom specific project requirements and site-unique constraints.



Recommended ENCLAD™ support systems for Terracotta rainscreen:

  • Hook On Secret Fixed - EN02 (horizontally laid)

  • Hook On Secret Fixed - EN03 (vertically laid)

Engineering Custom solutions

Thermosash design and detail the facade solution to meet project demand for seismic risk, wind loads, climate zones, corrosion zones and building importance levels as well as aesthetics, unique site constraints and budgetary requirements. We have extensive experience in integrating our systems and products to deliver a total facade solution.

Unitised pre-fabrication

Our systems are prefabricated and glazed at our manufacturing facilities (Auckland, Wellington and Christchurch) and can be transported for just-in-time site delivery. Due to prefabrication and the unitised modular design of our products and systems our highly skilled installation teams can close in buildings rapidly saving on programme time and mitigate follow on trade risk.

Maintenance

A full maintenance manual is provided on completion of a project for all the elements integrated within a project. Compliance to a maintenance schedule is essential to maintaining the quality of the installed product over time. Using Thermosash-approved facade maintenance contractor/personnel ensures the highest standards are met.

Warranty

We provide a materials manufacturer/supplier warranty of 10 years for the ENCLAD™ Support System.

Read more Read less

Key Features

ENCLAD™ SUPPORT SYSTEM FEATURES:

    • Non-combustible.

Bracket and rail profiles are extruded from 3mm solid aluminium.

    •  B1 Structure

Our support system is project specifically engineered to meet specification requirements.

    • B2 Durability

Our extrusions are Duralloy powdercoated for enhanced durability.

    • H1 Energy Efficiency.

Our systems accommodate cavity and packers/isolators at bracket locations.

ENCLAD™ EN02 adjustable support for horizontally laid terracotta:

      • 82mm for 50mm insulation
      • 105mm for 75mm insulation

ENCLAD™ EN03 adjustable support for vertically laid terracotta:

      • 107mm for 50mm insulation
      • 132mm for 75mm insulation
      • 152mm for 100mm insulation
    • PS1 & PS3 Producer Statement for Design

Can be provided upon request.

Brochures

Thermosash ENCLAD™ Rainscreen Support Systems

April 2025

Thermosash Terracotta Brochure

August 2024

Specification

We recommend using Masterspec 4216IR RAINSCREEN CLADDING SUPPORT SYSTEM when specifying this system type.



INSTALLATION REQUIREMENTS

  • Must be installed by an approved Thermosash Group Installer.
  • We require the Timber/support structure (dwangs and structural nogs) to be positioned to suit our panel set-out for fixing purposes free of charge. This structure must be adequate for the standard fixings/loadings that will be imposed upon it by our products.


DESIGN REQUIREMENTS

  • Must be engineered, designed and supplied by Thermosash Group approved contractors.
  • We have engineered our product to maximum panel deflections of 1/60 for visible cladding under SLS loading, which equates to NZS 4223.
  • The critical weathering line relies on the design and integrity of the Rigid Air Barrier (RAB) with fully sealed joints installed by others.

CAD Downloads

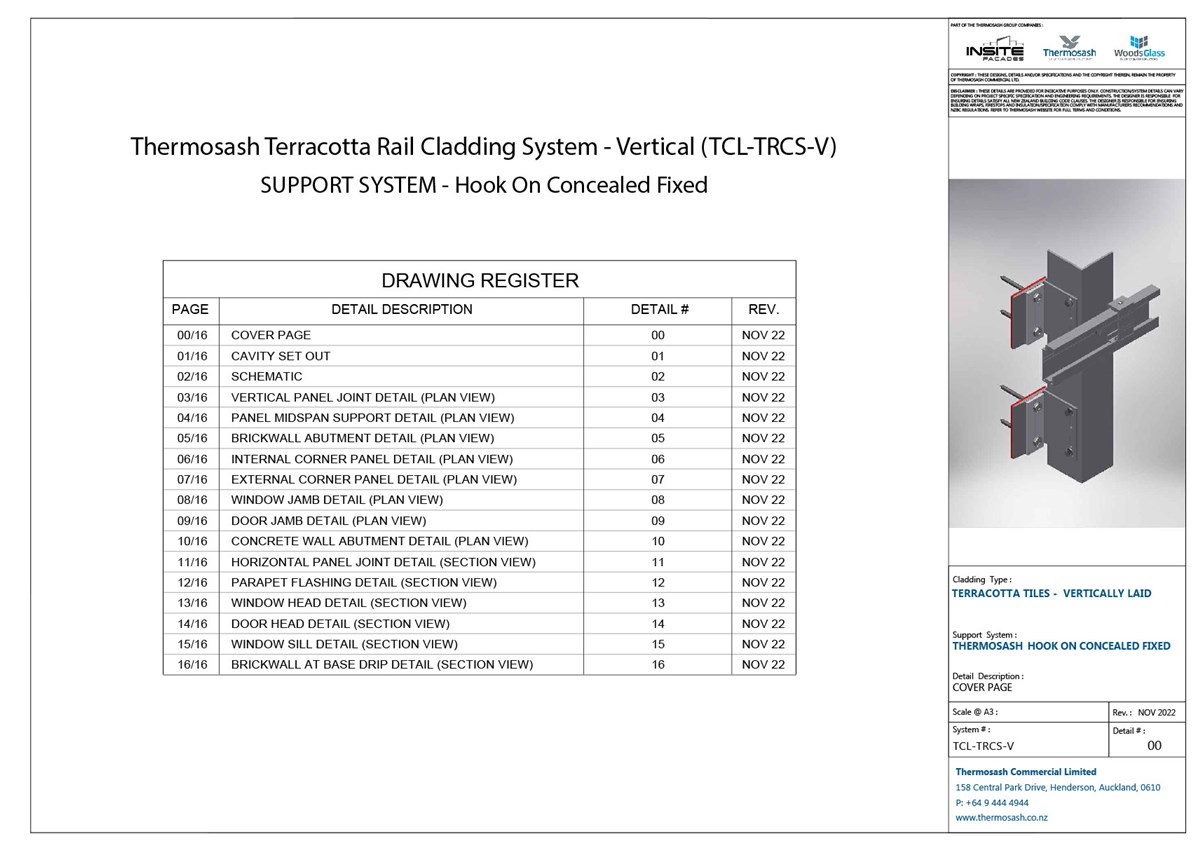

CAD Download - Terracotta Vertically Laid

Terracotta Vertically Laid

ENCLAD™ EN03 - Hook On Secret Fixed: suitable for medium size or medium weight cladding.

Download PDF for window, door and wall abutment plan views, sections and details.

CAD Download - Terracotta Horizontally Laid

Terracotta Horizontally Laid

ENCLAD EN02 - Hook On Secret Fixed: suitable for horizontally laid Terracotta tiles.

Download PDF for window, door and wall abutment plan views, sections and details.

Finishes

TERRACOTTA TILES

Colours: Multiple colours and sizes, Glazed options

Textures: Yes

See our Terracotta Brochure under 'Brochures' for more detailed information.
