Bow Truss

Product Description

Bow Truss Structural Glass Assemblies also known as Suspended Assemblies have high impact visually but as they are always specific design solutions, they require significant engineering consideration and must still provide a high level of weathering despite contingency in the detailing.

Thermosash, in partnership with Woods Glass, are the specialists in engineered structural glass assemblies and have completed some of the most iconic installations in New Zealand. Woods Glass utilise their extensive experience in sourcing proprietary fittings and often high performance over sized glass, whilst Thermosash undertake the structural engineering and manufacturing - developing specifically customised solutions for each project.

Engineering

As structural glass assemblies do not have the benefit of movement joints or seismic receivers like a conventional aluminum framed curtainwall, special consideration must be given to building movement, live load deflections and environment loads such as wind and seismic.

As these types of assemblies are often installed in areas of high-density people movement, i.e. emergency egress pathways where human safety is paramount, it is imperative that they are engineered accordingly and that the glass specified is appropriate for overhead situations.

Our in-house glass engineers are capable of helping design and engineer a solution for you and can provide Producer Statements 1 (Design), 2 (Design Review), 3 (Construction) & 4 (Construction Review) as required for client and or council compliance.

Performance / Testing

  • AS/NZS1170 (Structural Design Actions)
  • NZS4223 (Glazing in Buildings)
  • NZS/AS4284:2008 (Water / Air Pressure/ Air Leakage - Meets and exceeds minimum requirements)

Maximum Spanning Ability

Thermosash specifically engineers the best suite option for your project taking into consideration span, structural system, and environmental loads (e.g. wind). The spanning ability will vary depending on the above.

Warranty

The standard warranty is 10 years from the date of practical completion. This covers workmanship and weather tightness, providing the subcontract includes fabrication, installation and glazing of all components, and the maintenance schedule is adhered to.

Maintenance

It is recommended by almost all material suppliers that building washing should occur every 3-6 months to prevent staining to glass and prevent environmental pollutants from corroding metals and to maintain the material warranties.

A full maintenance manual is provided on completion of a project for all the elements integrated within a project. Compliance to a maintenance schedule is essential to maintaining the quality of the installed product over time. Using Thermosash-approved facade maintenance contractor/personnel ensures the highest standards are met.

Read more Read less

Key Features

  • An extremely flexible design medium - your concept can be realised in glass.
  • Frameless entrances to entire fitting-free glass structures.
  • Thermosash offer the full service of consulting, engineering, procurement of special glass or fittings, manufacturing and installation.

Brochures

Thermosash Total Vision Structural Glass

2024

Specification

These projects are always bespoke and often complex. We suggest we review your concept early in development to assist in material selection and engineering constraints.

Finishes

There are almost limitless possibilities with glass selection, performance, coloured, thickness and size range including multiple colour PVB laminate.

Relevant Projects

UOA Business School

UOA Business School

Auckland

Archimedia / FJMT Architects

Fletcher

2008

Royal Sun Alliance

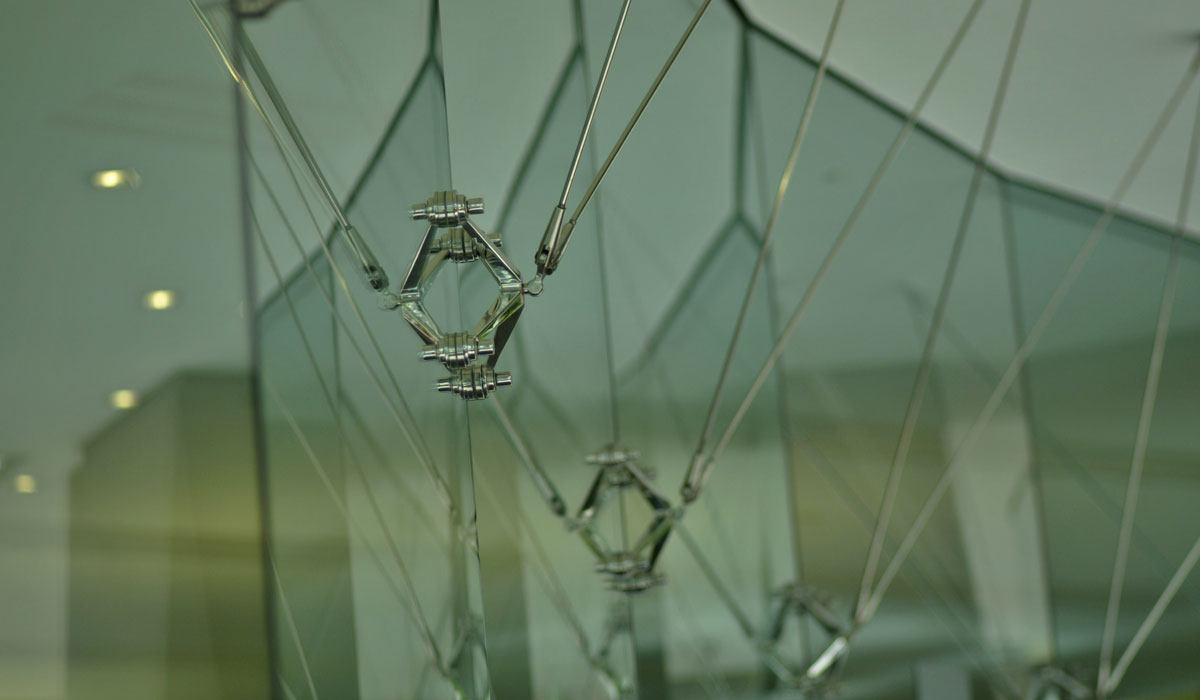

Royal Sun Alliance
