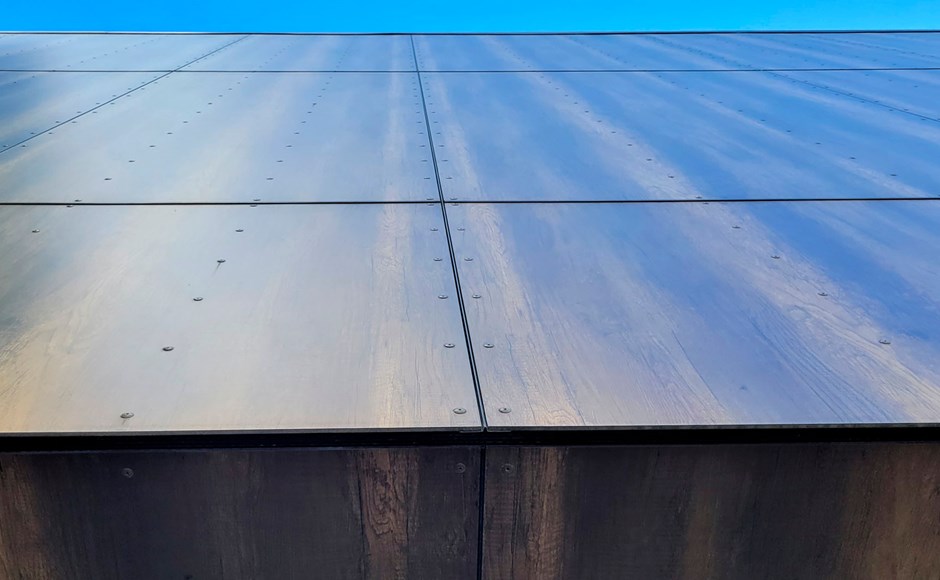

HPL MPI Building
MPI HPL 01
EN01 (1)
EN04 Hook On Secret F
EN05 FF Hook On Secret Fixed

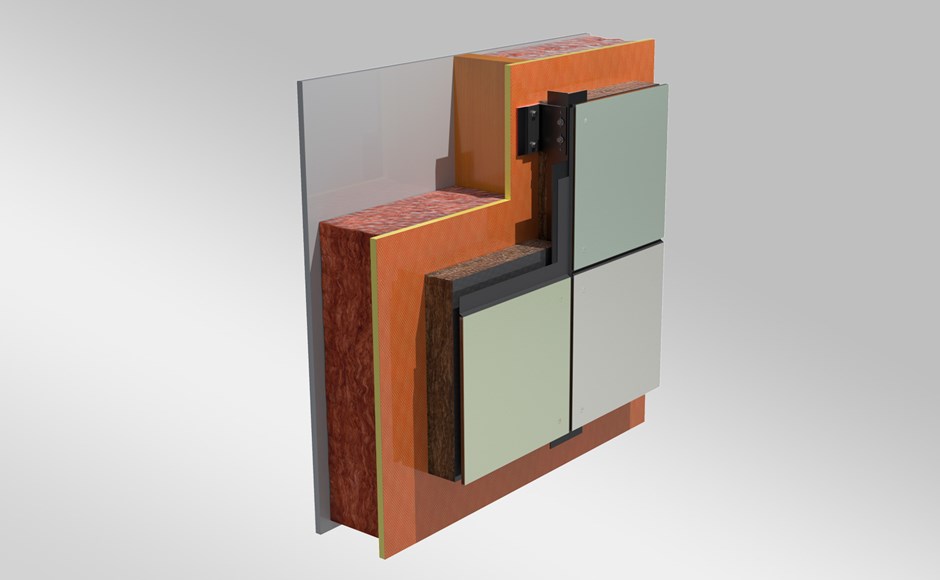

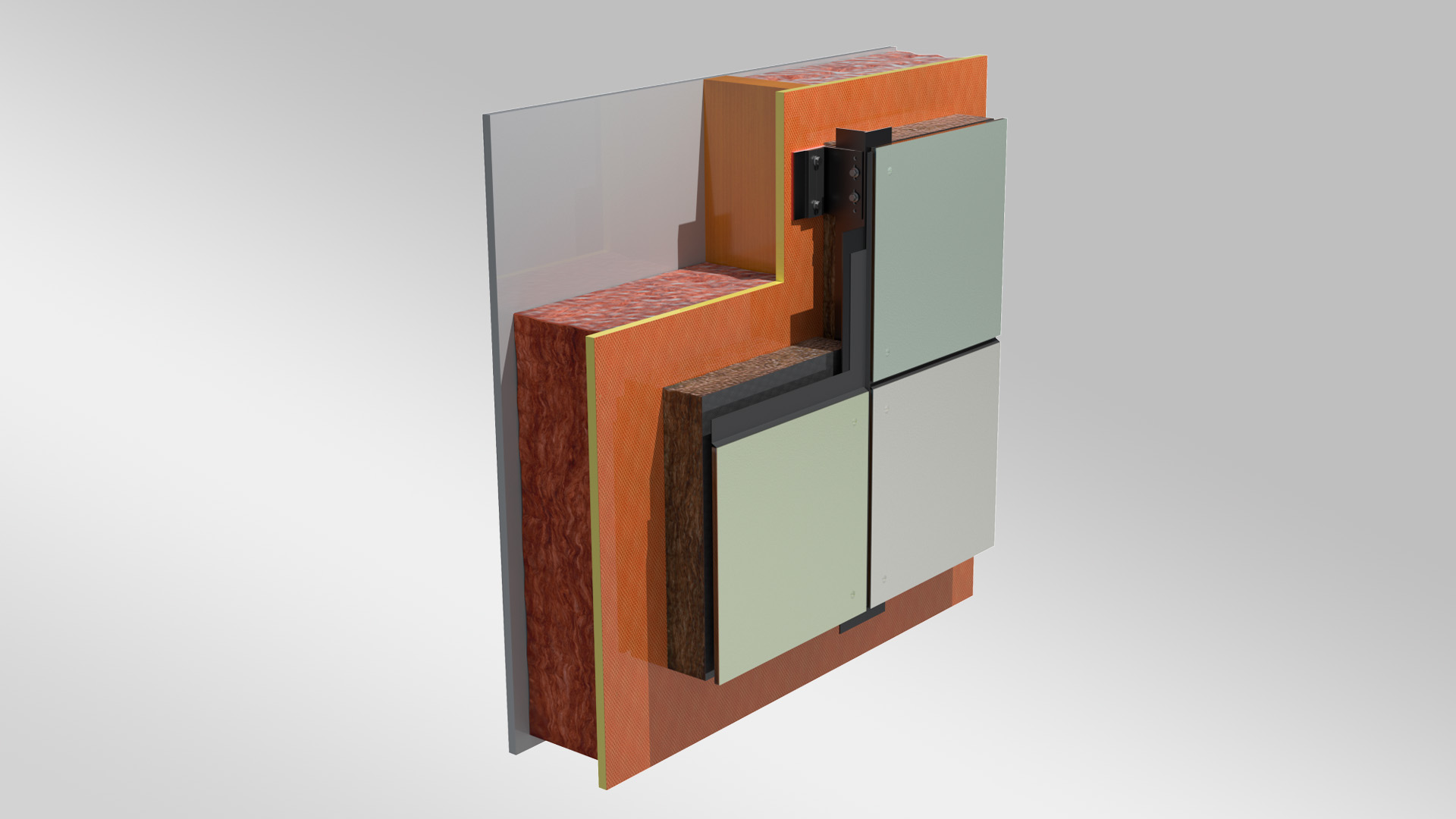

High Pressure Laminate 3D

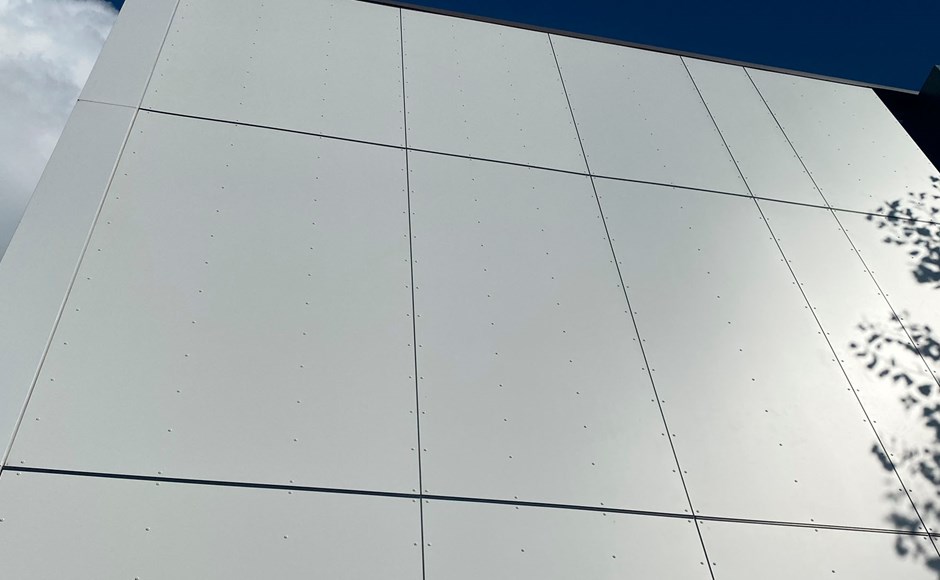

HPL MPI Building 02

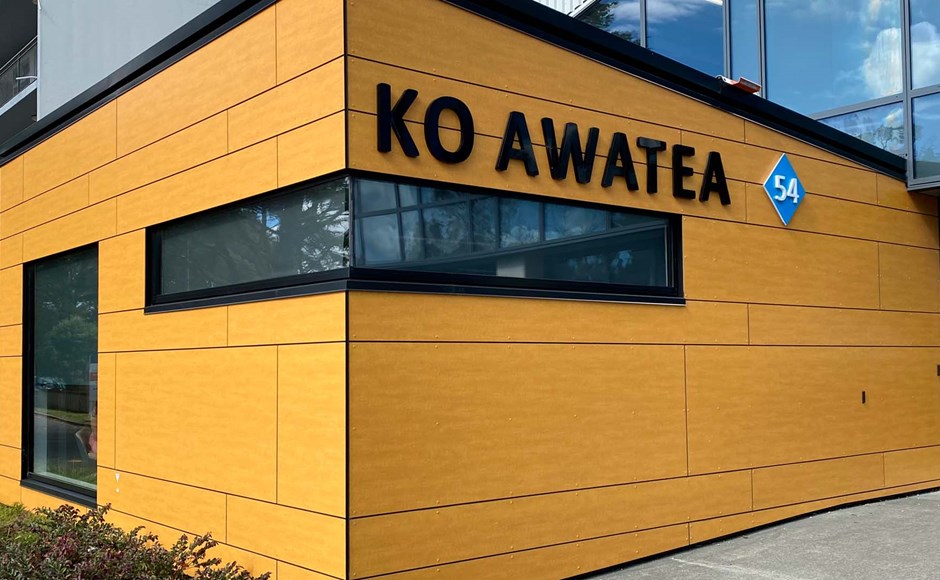

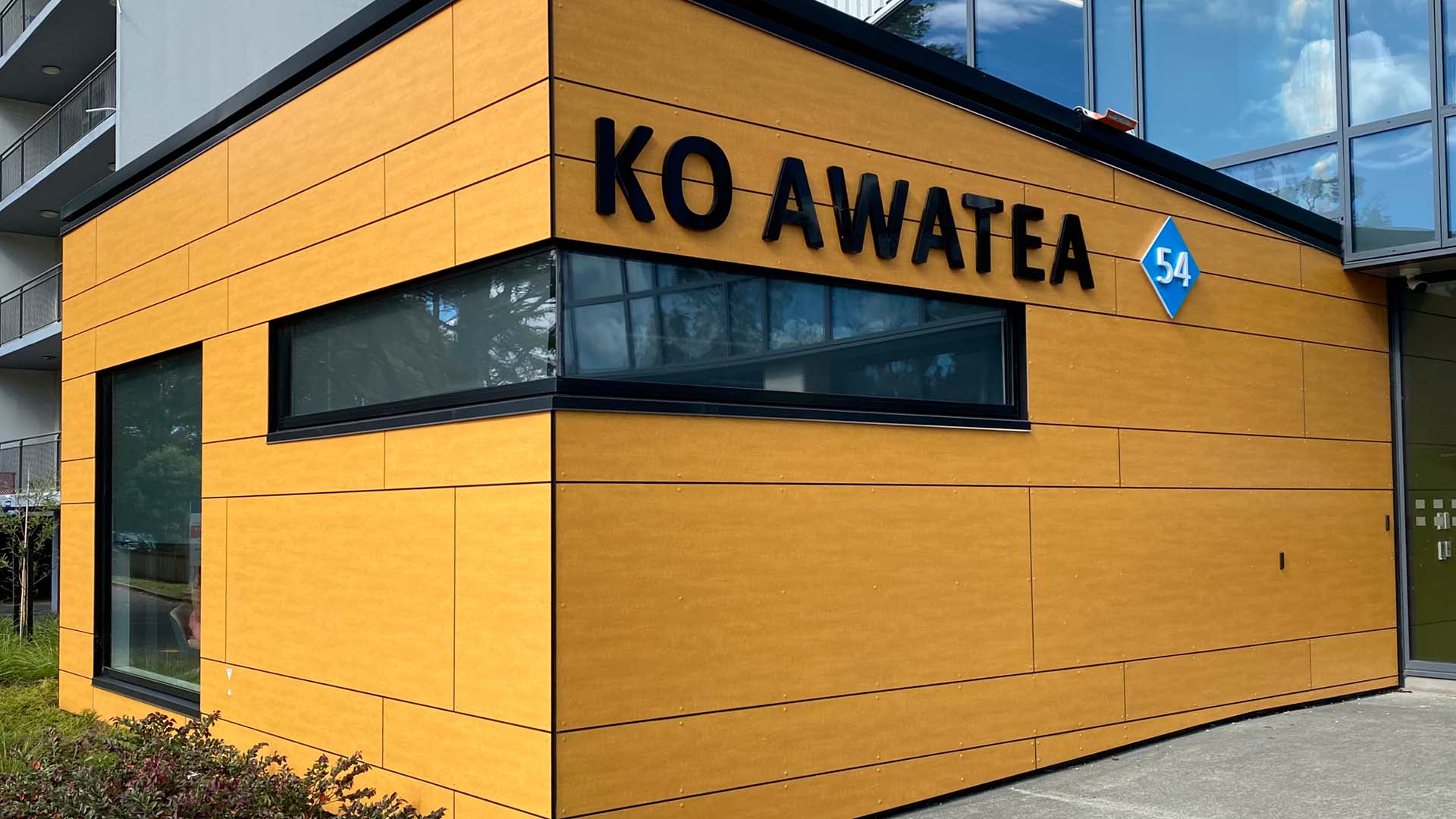

Ko Awatea HPL Horizontal

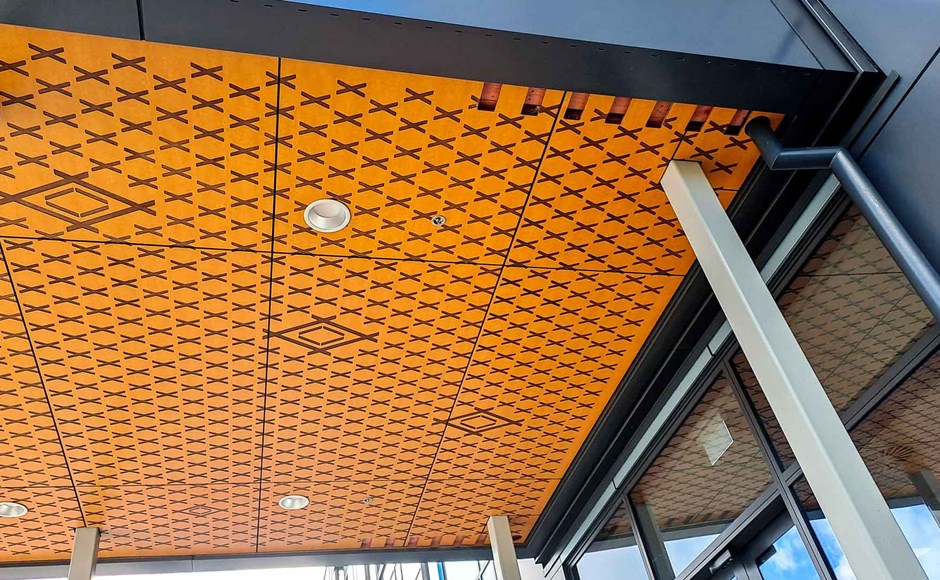

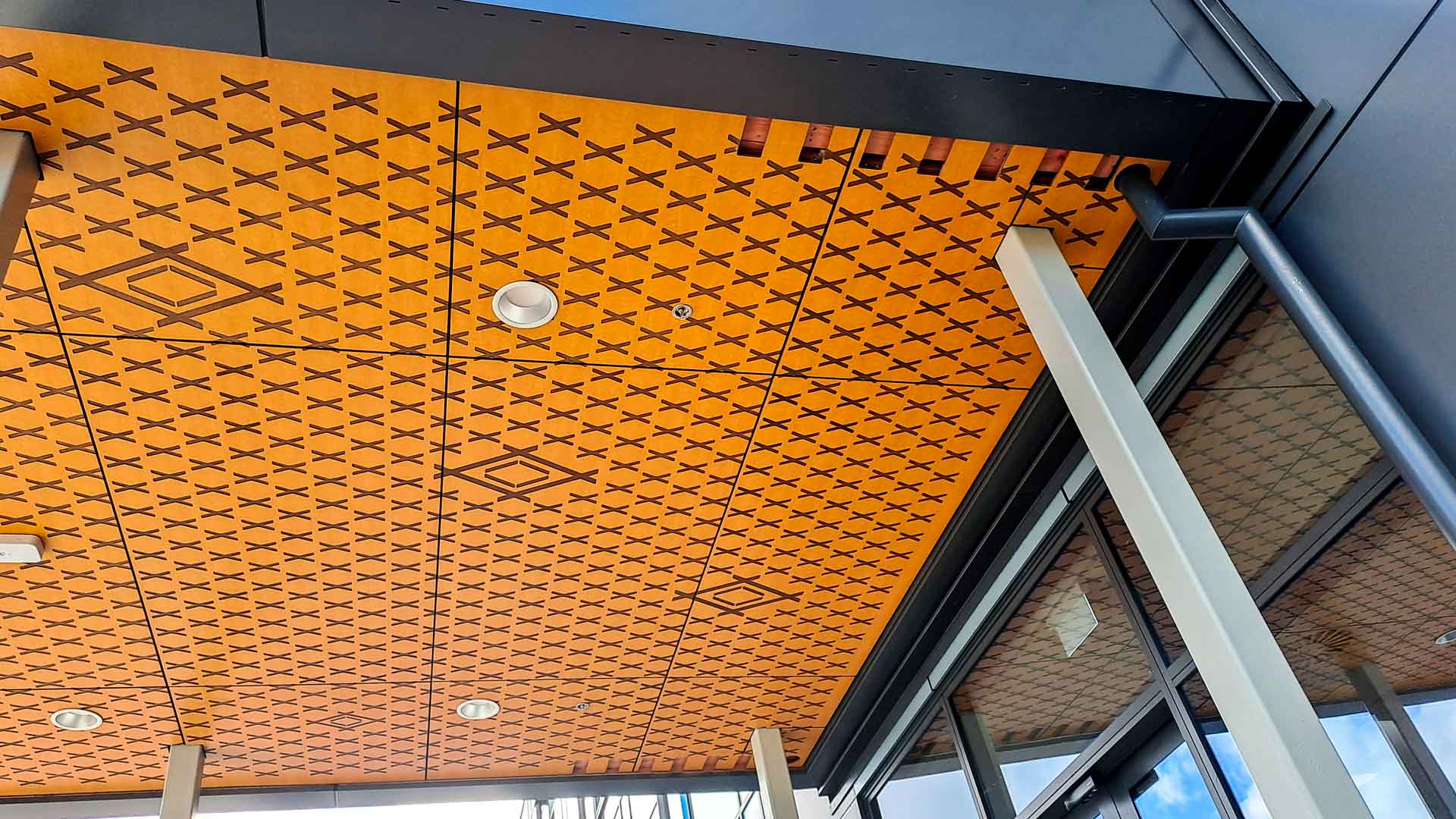

HPL NDHB Te Kotuku 01

Product Description

High Pressure Laminates (HPL) are tough and lightweight high-performance materials and are available in a wide range of coloured decors with good UV performance preventing fading and discolouration over time. Panels are available in several size formats and can be machined to suit project-specific requirements.

These large format panels are flat with a clean edge and can be face fixed/visible fixed with colour matched rivets or secret fixed depending on panel thickness.

ENCLAD™ is Thermosash’s proprietary range of bracket profiles engineered specifically to support various types of rainscreen cladding. We have expert in-house teams working to ensure the design, engineering, procurement, fabrication and installation of our solutions deliver on custom specific project requirements and site-unique constraints.



Recommended ENCLAD™ support systems for High Pressure Laminate rainscreen:

  • Visible Fixed - EN01
  • Hook On Secret Fixed - EN04
  • Hook On Secret Fixed - EN05-FF (support system spans floor to floor)

Engineering Custom solutions

Thermosash design and detail the facade solution to meet project demand for seismic risk, wind loads, climate zones, corrosion zones and building importance levels as well as aesthetics, unique site constraints and budgetary requirements. We have extensive experience in integrating our systems and products to deliver a total facade solution.

Unitised pre-fabrication

Our systems are prefabricated and glazed at our manufacturing facilities (Auckland, Wellington and Christchurch) and can be transported for just-in-time site delivery. Due to prefabrication and the unitised modular design of our products and systems our highly skilled installation teams can close in buildings rapidly saving on programme time and mitigate follow on trade risk.

Maintenance

A full maintenance manual is provided on completion of a project for all the elements integrated within a project. Compliance to a maintenance schedule is essential to maintaining the quality of the installed product over time. Using Thermosash-approved facade maintenance contractor/personnel ensures the highest standards are met.

Warranty

We provide a materials manufacturer/supplier warranty of 10 years for the ENCLAD™ Support System.

Read more Read less

Key Features

ENCLAD™ SUPPORT SYSTEM FEATURES:

    • Non-combustible.

Bracket and rail profiles are extruded from 3mm solid aluminium.

    •  B1 Structure

Our support system is project specifically engineered to meet specification requirements.

    • B2 Durability

Our extrusions are Duralloy powdercoated for enhanced durability.

    • H1 Energy Efficiency.

Our systems accommodate cavity and packers/isolators at bracket locations.

ENCLAD™ EN01 visible fixed adjustable support for HPL:

      • 75mm for 50mm insulation
      • 95mm for 75mm insulation
      • 120mm for 100mm insulation

ENCLAD™ EN04 secret fixed adjustable support for HPL:

      • 125mm for 50mm insulation
      • 137mm for 75mm insulation
      • 162mm for 100mm insulation

ENCLAD™ EN05-FF secret fixed adjustable support for HPL:

        • 125mm - 150mm
    • PS1 & PS3 Producer Statement for Design

Can be provided upon request.

Brochures

Thermosash ENCLAD™ Rainscreen Support Systems

April 2025

Specification

We recommend using Masterspec 4216IR RAINSCREEN CLADDING SUPPORT SYSTEM when specifying this system type.



INSTALLATION REQUIREMENTS

  • Must be installed by an approved Thermosash Group Installer.
  • We require the Timber/support structure (dwangs and structural nogs) to be positioned to suit our panel set-out for fixing purposes free of charge. This structure must be adequate for the standard fixings/loadings that will be imposed upon it by our products.


DESIGN REQUIREMENTS

  • Must be engineered, designed and supplied by Thermosash Group approved contractors.
  • We have engineered our product to maximum panel deflections of 1/60 for visible cladding under SLS loading, which equates to NZS 4223.
  • The critical weathering line relies on the design and integrity of the Rigid Air Barrier (RAB) with fully sealed joints installed by others.

CAD Downloads

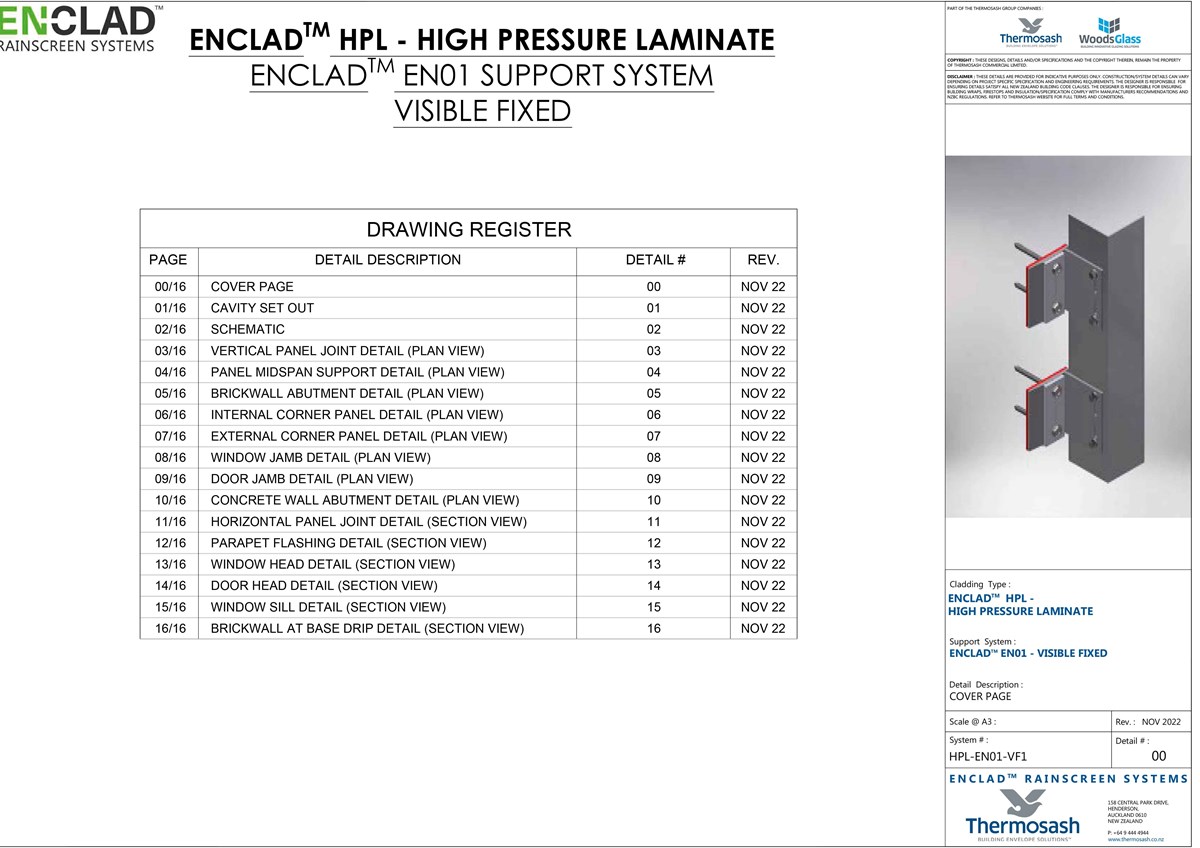

CAD Download - High Pressure Laminate Support - EN01

High Pressure Laminate Support - EN01

ENCLAD™ EN01 - Visible Fixed: is suitable for thin smooth cladding.

Download PDF for window, door and wall abutment plan views, sections and details.

CAD Download - High Pressure Laminate Support - EN04

High Pressure Laminate Support - EN04

ENCLAD™ EN04 - Secret Fixed: is suitable for large size or heavy weight cladding.

Download PDF for window, door and wall abutment plan views, sections and details.

CAD Download - High Pressure Laminate Support - EN05-FF

High Pressure Laminate Support - EN05-FF

ENCLAD™ EN05-FF - Secret Fixed: is suitable where floor to floor spans are required (i.e. non-load bearing walls).

Download PDF for window, door and wall abutment plan views, sections and details.

Finishes

HIGH PRESSURE LAMINATE

Colours: Numerous solid colour decors, natural timber veneers/decors, digitally printed images.

Perforations: Yes
