Thermosash DeltaGuard™

Let's talk about your next project

Auckland

Wellington

Christchurch

Product Description

DeltaGuard™ is a security window system developed for low to medium security human and physical structural impact project requirements. A specifically engineered frame and combined glass suite offering correctional facilities, youth detention, acute and forensic mental health facilities and data centre projects the peace of mind on entry or exit retriction and ballistic or blast control – protecting those that are in the building, behind our security façade systems.

The DeltaGuard™ suite has undergone continual development over the last 25 years - originally developed for youth detention facilities it has been further utilised in New Zealand Government buildings, consulates, biocontainment facilities, correctional facilities and forensic and acute mental health facilities – designed to protect the users within the building, as much as the public, by having no accessible parts that can be used for weapons and self-harm, and by our blast systems that can absorb and mitigate the potential for shrapnel damage internally.

Engineering

Each system is custom engineered for the intended use, span, and building construction.

Low-carbon aluminium window system

Thermosash partners with a local NZ-owned extruder achieving a lower carbon footprint than the global average - offering reduced upfront carbon emissions. (find out more about our Sustainable Aluminium).

Aluminium is 100% recyclable and all aluminium from refurbished sites and from our manufacturing process is environmentally managed back to our key suppliers and processed back into raw billet form.

The Suite has multiple options that can include;

Impact resistant frame and glazing unit - fixed
Integrated / isolated automated venetian blind for anti-ligature mitigation or microbial cleaning separation.

Please Note: DeltaGuard™ is not intended for high security protection where we would recommend SÄLZER for medium to high end security, ballistic, intruder and blast protection. Talk to us about your project so that we can supply the safest product for you.

Warranty

Generally, the standard warranty is 10 years from the date of practical completion for these products. This covers workmanship and weather tightness, providing the subcontract includes fabrication, installation and glazing of all components, and the maintenance schedule is adhered to.

Maintenance

Maintaining glass, metals and stone are all particular to the environment that they are placed in: eg. marine, environmental pollution, exposure to natural washing, etc.

It is recommended by almost all material suppliers that building washing should occur every 3-6 months to prevent staining to glass and prevent environmental pollutants from corroding metals and to maintain the material warranties.

A full maintenance manual is provided on completion of a project for all the elements integrated within a project. Compliance to a maintenance schedule is essential to maintaining the quality of the installed product over time. Using Thermosash-approved facade maintenance contractor/personnel ensures the highest standards are met.

Thermosash intruder and impact testing

Key Features

Reinforced frame to take high impact internal loading, external loading or both.
Designed to mitigate frame parts converting to weapons
Ability to quickly switch out primary glass if damaged to reduce time a room is unoccupied where necessary
Glazing pocket designed to accommodate varying glass thickness to meet projects needs
Glazing options include; polycarbonate, Glass or IGU
Anti-ligature internal design
Domestic / residential non-institutional aesthetic.
Tested for tool damage / destruction – intrusion resistance.
Each system is specifically engineered for your project's needs
Options available to provide security to restrict transfer of contraband

Brochures

DeltaGuard Product Disclosure - documents package

2023

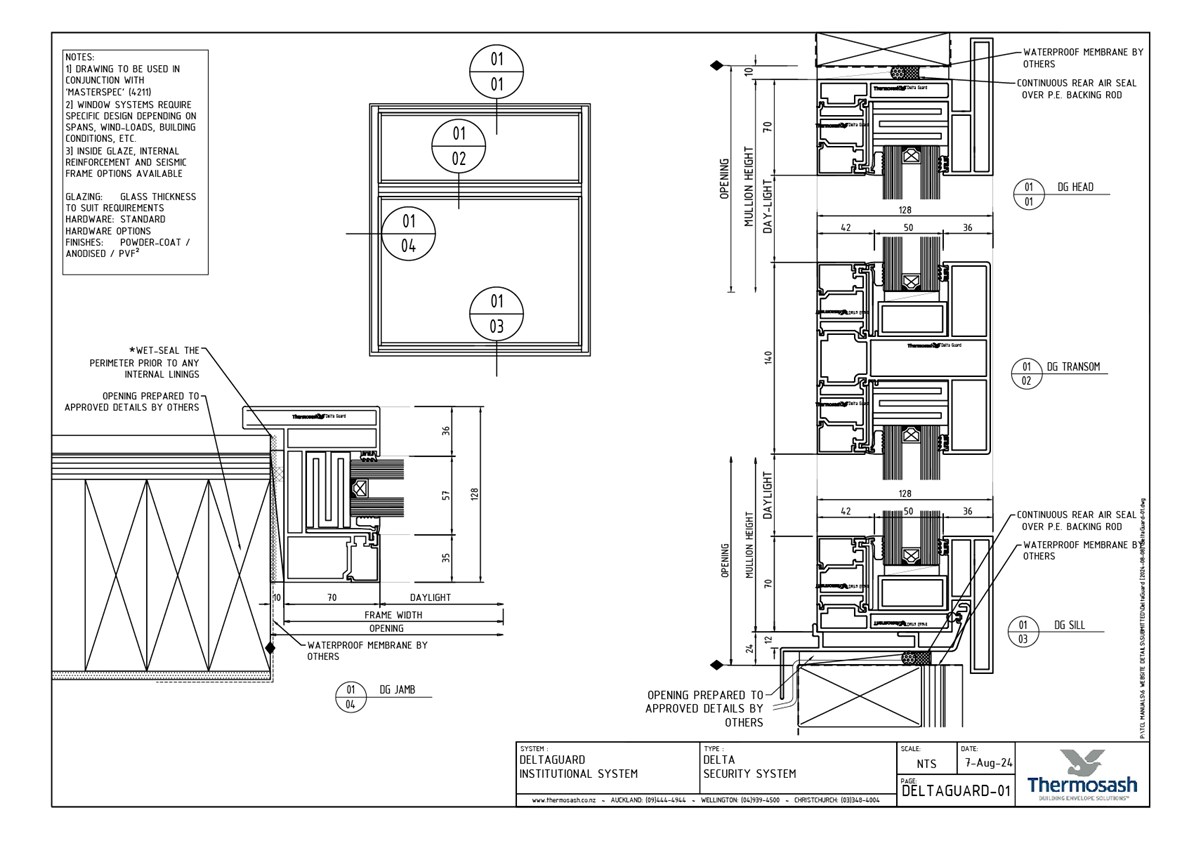

Specification

Sizing of units is subject to project security needs, and limitations may apply pending application and structural load intent - please contact us to discuss details / engineering requirements for your project.

Finishes

Polyester powder coat - both standard and special colours available.
Anodised - all anodised colours available - commercial grade 20 micron finish recommended.
PVF2 Fluorocarbon finishes - available on request.
