Extruded and Composite Fins

Product Description

Thermosash have a variety of extruded blades that range from 90mm up to 1200mm - all able to be integrated into our façade suites without the need for additional structure by other trades. The blade systems can be fixed or actuated via integrated BMS functions offering a high quality external building shade system that can lower the heat gain on your building and make it look great.

The added advantage of a Thermosash system is you design it - Thermosash engineers it!

Where your design requires a bespoke solution, Thermosash can engineer a solution and as we manufacture at our premises in Auckland, Wellington and Christchurch can custom clad your blade with almost any durable material.

Section Sizes

Contact us to discuss your own design.

Integration

For window system that these can integrate with seamlessly, please see the following suites and specifications:

Delta Commercial windows - Masterspec 4251TS Commercial Windows

Unitised Suites - Masterspec 4211TS Curtainwalling

Performance / Testing

AS/NZS1170 (Structural Design Actions) NZS4223 (Glazing in Buildings) NZS/AS4284:2008 (Water / Air Pressure/ Air Leakage - Meets and exceeds minimum requirements)

Maximum Spanning Ability

Thermosash specifically engineers the best suite option for your project taking into consideration span, structural system, and environmental loads (e.g. wind). The spanning ability will vary depending on the above. Thermosash Suites are recognized as having the largest spanning systems on the market due to our specific engineering capability and the customised nature of the work we complete.

Warranty

The standard warranty is 5 years from the date of practical completion for these products. This covers workmanship and weather tightness, providing the subcontract includes fabrication, installation and glazing of all components.

Read more Read less

Key Features

  • Can be designed for light, glare, heat or aesthetics.
  • Fully integrable blades and connection systems.
  • Proprietary or full customisable.
  • When incorporated into a Thermosash façade do not generally require additional structure and do not penetrate the wet zone of the façade - meaning no leaks.
  • 100% New Zealand made.
  • Fixed or pivoted.
  • All systems engineered by our in-house structural and façade engineer.

Specification

We recommend using Masterspec 4251TS Commercial Windows when specifying this suite.

Finishes

  • Polyester powdercoat - both standard and special colours available
  • Anodised - all anodised colours available - commercial grade 20 Micron finish recommended
  • PVF2 Fluorocarbon finishes - available on request

Relevant Projects

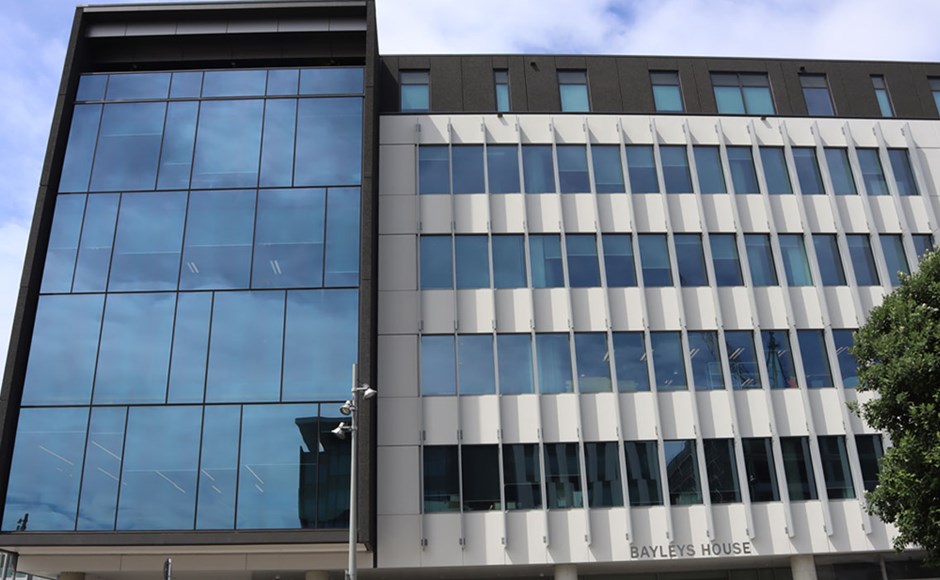

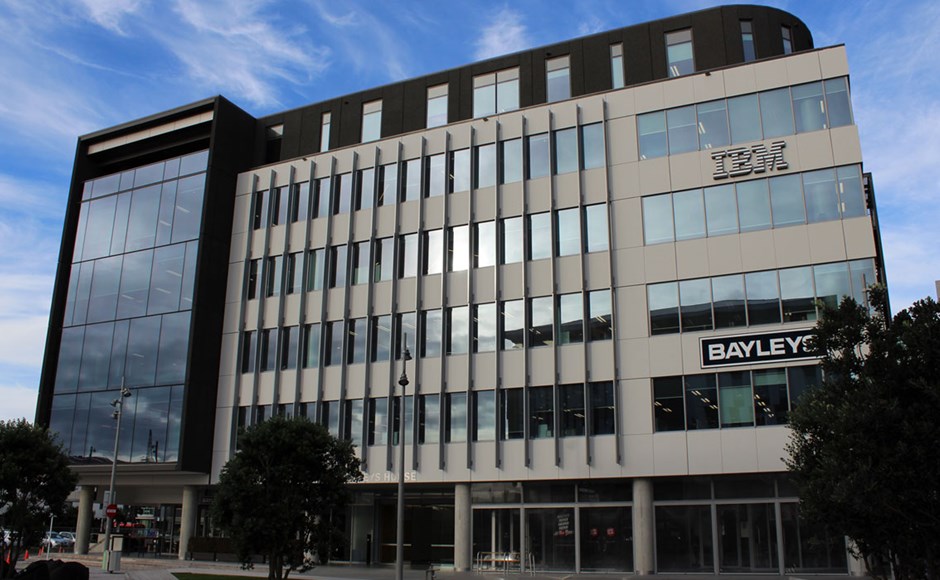

Bayleys (Building C)

Bayleys (Building C)

Auckland

Jasmax

Fletcher

2016

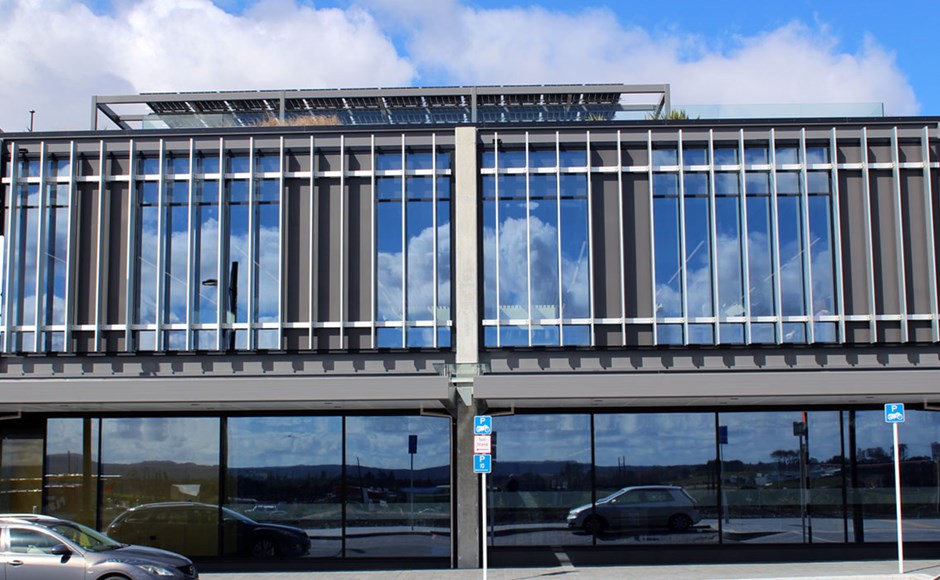

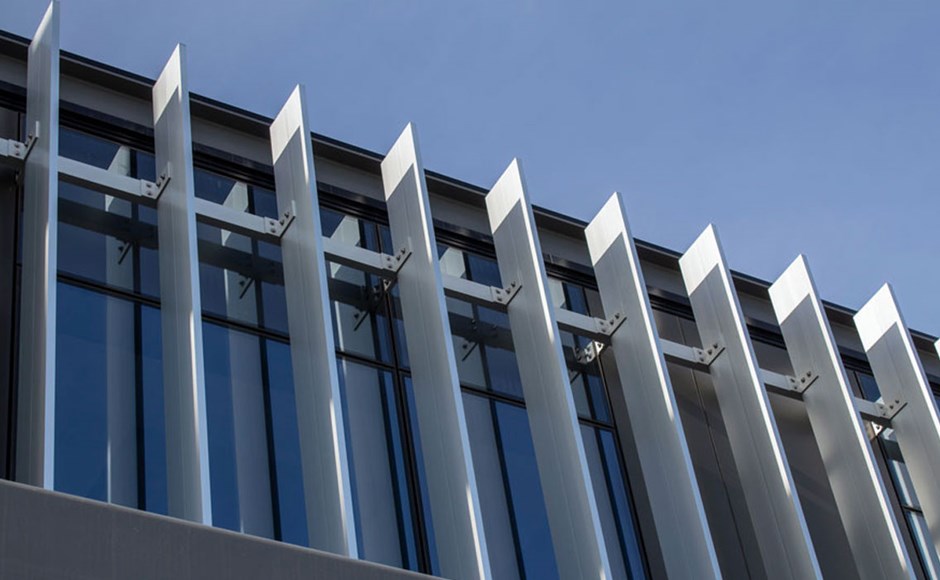

Westgate Library

Westgate Library

Auckland

Warren & Mahoney

2018

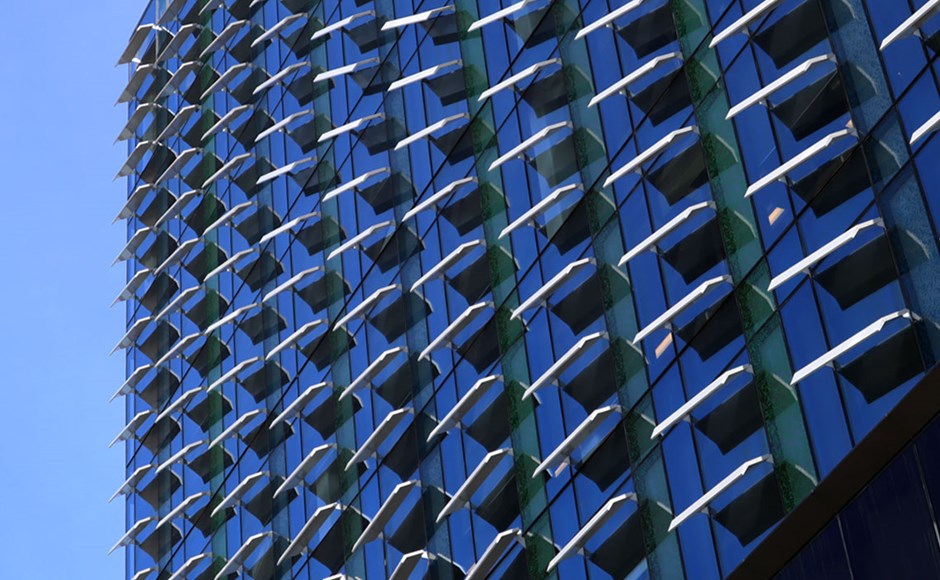

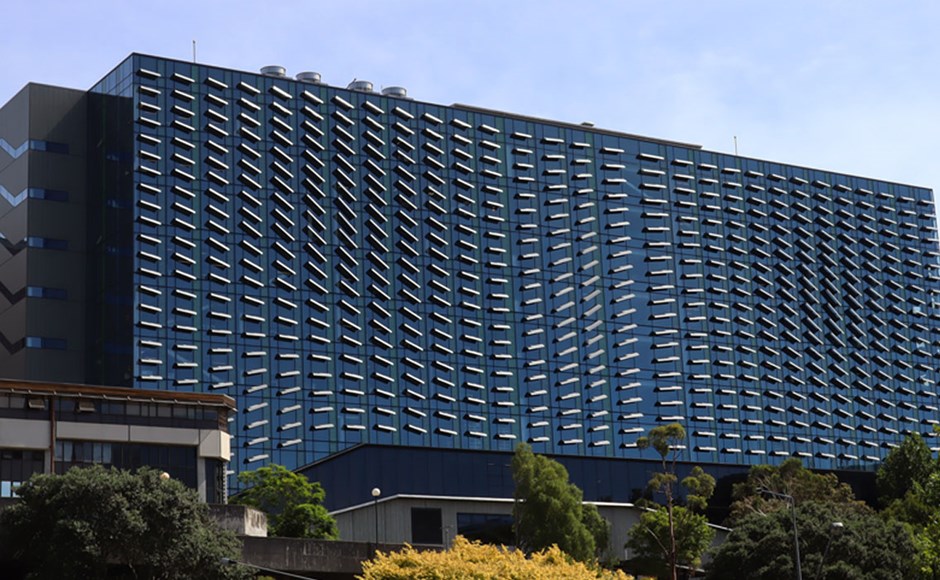

UOA Engineering (405)

UOA Engineering (405)

Auckland

Jasmax

Hawkins

2019

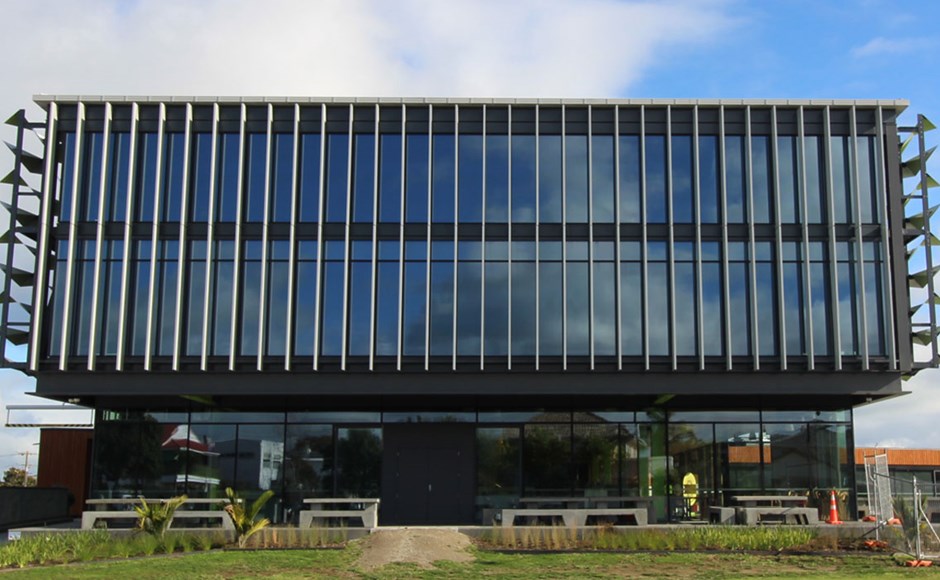

Zespri HQ

Zespri HQ

Tauranga

Warren & Mahoney Architects

Hawkins Construction

2019

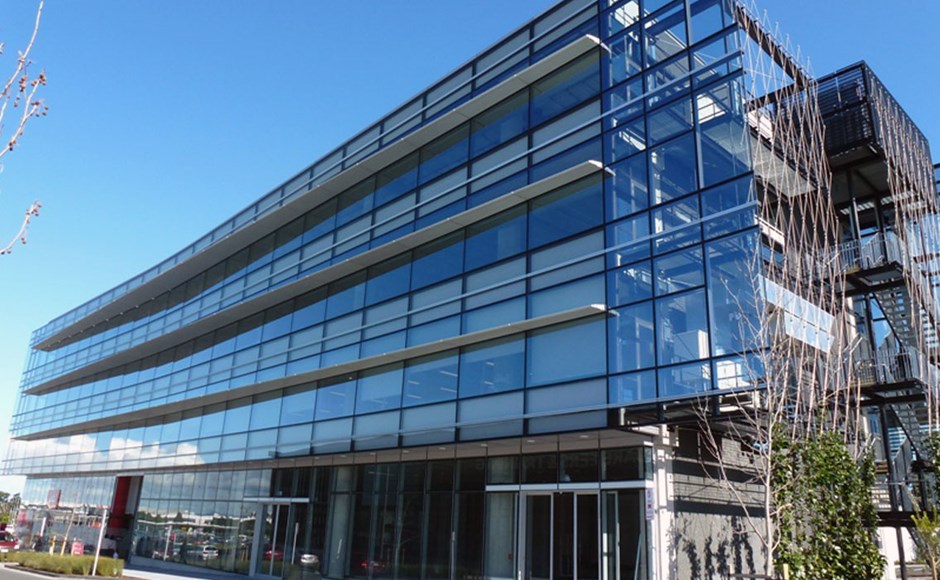

Quad 5 Building (AIAL)

Quad 5 Building (AIAL)

Auckland

Jasmax

Scarbro Construction

2012

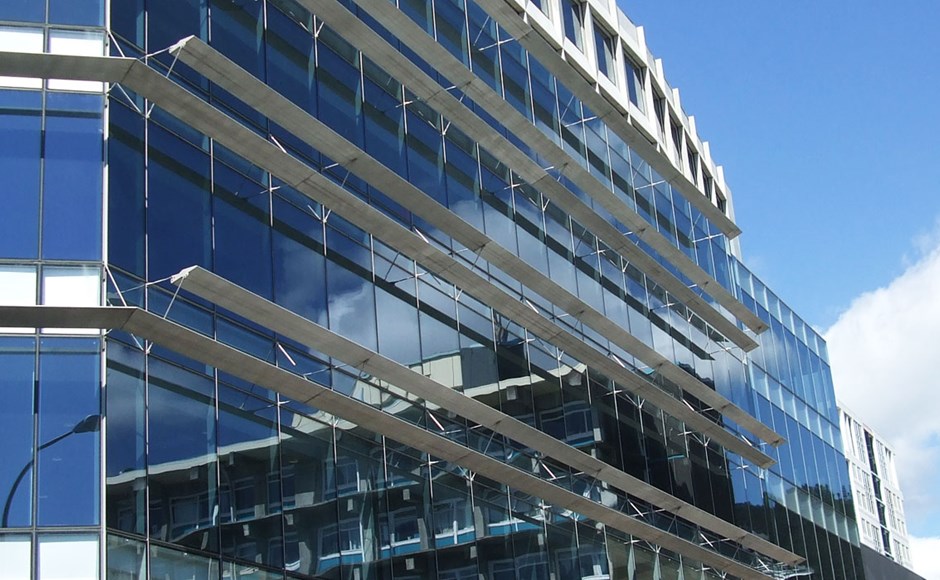

Pipitea Plaza

Pipitea Plaza

Wellington

Athfield Architects

Naylor Love

2011
