Product Description

A good rainscreen support system will manage moisture and improve durability and energy efficiency of the exterior cladding.  It provides support while creating a ventilated cavity between the cladding and the structural wall which allows water that may penetrate the outer layer to drain and evaporate thereby protecting the inner wall.

ENCLAD™ Rainscreen Support Systems are Thermosash's engineered proprietary range of aluminium bracket profiles designed to efficiently support a wide range of rainscreen cladding materials.

ENCLAD™ systems are non-combustible and accommodate for material thickness, cavity depth, insulation, firestops and building construction tolerances.

ENCLAD™ systems support a wide range of cladding types, including:

  • Extruded Aluminium Plank (Horizontally Laid)
  • Extruded Aluminium Plank (Vertically Laid)
  • Solid Aluminium
  • Perforated Aluminium
  • Alucolux®
  • Stainless Steel
  • Copper
  • Solid Zinc
  • High Pressure Laminate (HPL)
  • Terracotta Tiles / Planks (Horizontally Laid)
  • Terracotta Tiles / Planks (Vertically Laid)
  • Porcelain Tiles
  • Glass Fibre Reinforced Concrete (GRC)

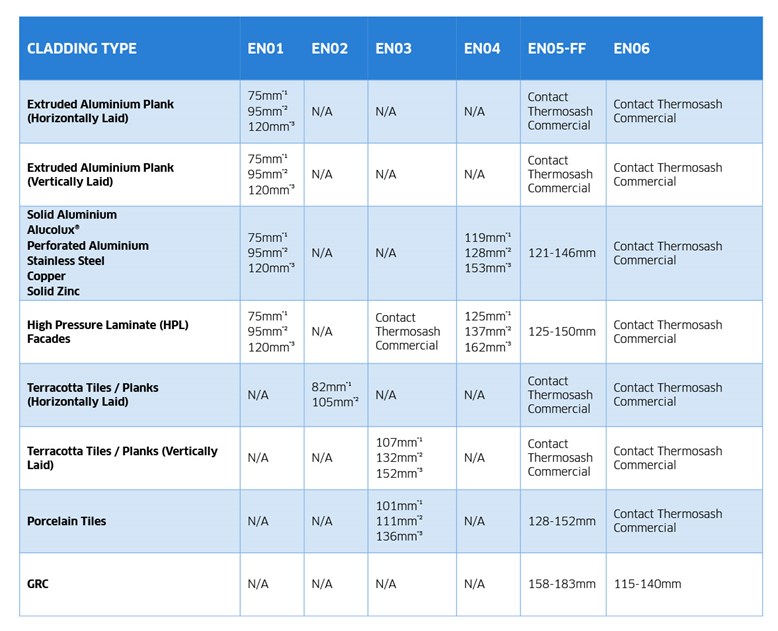

ENCLAD™ adjustable system types

*1 To suit 50mm insulation; *2 To suit 75mm insulation; *3 To suit 100mm insulation



Engineering Custom solutions

Thermosash design and detail the facade solution to meet project demand for seismic risk, wind loads, climate zones, corrosion zones and building importance levels as well as aesthetics, unique site constraints and budgetary requirements. We have extensive experience in integrating our systems and products to deliver a total facade solution.

Unitised pre-fabrication

Our systems are prefabricated and glazed at our manufacturing facilities (Auckland, Wellington and Christchurch) and can be transported for just-in-time site delivery. Due to prefabrication and the unitised modular design of our products and systems our highly skilled installation teams can close in buildings rapidly saving on programme time and mitigate follow on trade risk.

Maintenance

A full maintenance manual is provided on completion of a project for all the elements integrated within a project. Compliance to a maintenance schedule is essential to maintaining the quality of the installed product over time. Using Thermosash-approved facade maintenance contractor/personnel ensures the highest standards are met.

Warranty

We provide a materials manufacturer/supplier warranty of 10 years for the ENCLAD™ Support System.

Read more Read less

Key Features

ENCLAD™ SUPPORT SYSTEM FEATURES:

    • Non-combustible.

Bracket and rail profiles are extruded from 3mm solid aluminium.

    • B1 Structure

Our support system is project specifically engineered to meet specification requirements.

    • B2 Durability

Our extrusions are Duralloy powdercoated for enhanced durability.

    • H1 Energy Efficiency.

Our systems accommodate cavity and packers/isolators at bracket locations. Our support system is project specifically engineered to meet specification requirements.

    • PS1 & PS3 Producer Statement for Design

Can be provided upon request.

Brochures

Thermosash ENCLAD™ Rainscreen Support Systems

April 2025

Thermosash ENCLAD Rainscreen Support System - BPIR V01

May 2025

Specification

We recommend using Masterspec 4216IR RAINSCREEN CLADDING SUPPORT SYSTEM when specifying this system type.



INSTALLATION REQUIREMENTS

  • Must be installed by an approved Thermosash Group Installer.
  • We require the Timber/support structure (dwangs and structural nogs) to be positioned to suit our panel set-out for fixing purposes free of charge. This structure must be adequate for the standard fixings/loadings that will be imposed upon it by our products.


DESIGN REQUIREMENTS

  • Must be engineered, designed and supplied by Thermosash Group approved contractors.
  • We have engineered our product to maximum panel deflections of 1/60 for visible cladding under SLS loading, which equates to NZS 4223.
  • The critical weathering line relies on the design and integrity of the Rigid Air Barrier (RAB) with fully sealed joints installed by others.

CAD Downloads

CAD Download - Extruded Aluminium - Horizontally Laid

Extruded Aluminium - Horizontally Laid

ENCLAD™ EN01 - Secret Fixed: suitable for thin smooth cladding.

Download PDF for window, door and wall abutment plan views, sections and details.

CAD Download - Extruded Aluminium - Vertically Laid

Extruded Aluminium - Vertically Laid

EN01 is suitable for visible or discrete rivet or face fixing of thin smooth cladding.


ENCLAD™ EN01 - Secret Fixed: download PDF for window, door and wall abutment plan views, sections and details.

CAD Download - Sheet Metal Cladding Support - EN01

Sheet Metal Cladding Support - EN01

ENCLAD™ EN01 - Visible Fixed: suitable for thin smooth cladding.

Download PDF showing window, door and wall abutment plan views, sections and details.

CAD Download - Sheet Metal Cladding Support - EN04

Sheet Metal Cladding Support - EN04

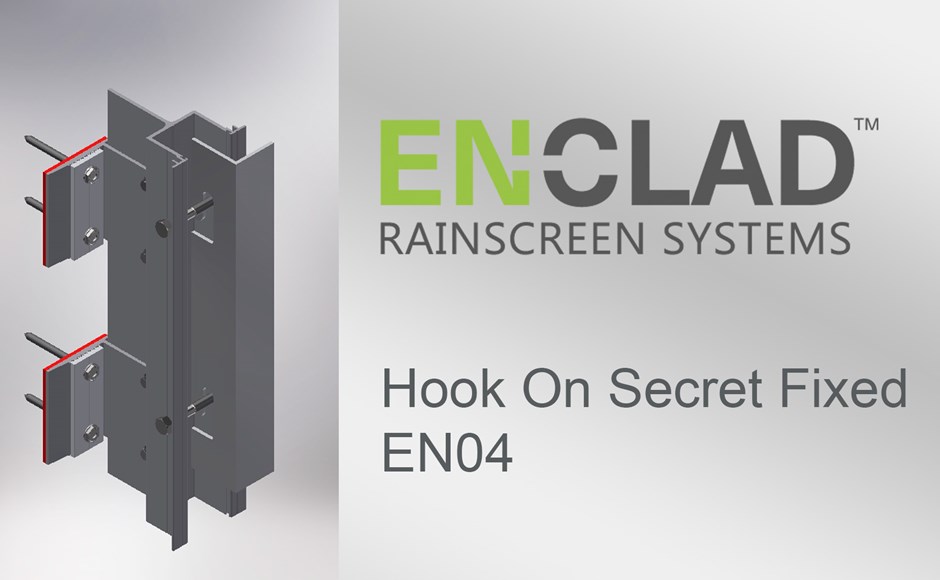

ENCLAD™ EN04 - Hook On Secret Fixed: suitable for large size or heavy weight cladding.

Download PDF for window, door and wall abutment plan views, sections and details.

CAD Download - Sheet Metal Cladding Support - EN05-FF

Sheet Metal Cladding Support - EN05-FF

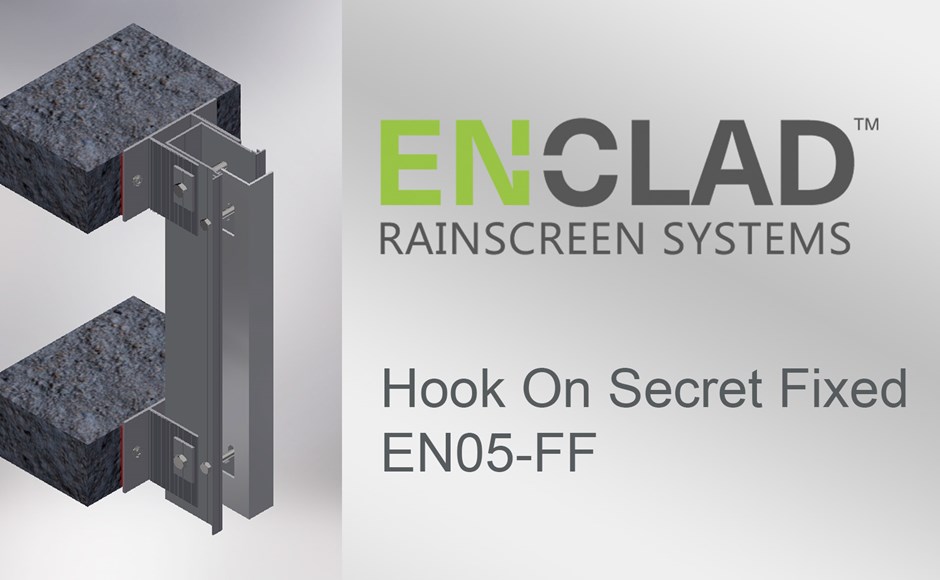

ENCLAD™ EN05-FF - Hook On Secret Fixed: for cladding where floor to floor spans are required (i.e. non-load bearing walls).

Download PDF for window, door and wall abutment plan views, sections and details.

CAD Download - High Pressure Laminate Support - EN01

High Pressure Laminate Support - EN01

ENCLAD™ EN01 - Visible Fixed: is suitable for thin smooth cladding.

Download PDF for window, door and wall abutment plan views, sections and details.

CAD Download - High Pressure Laminate Support - EN04

High Pressure Laminate Support - EN04

ENCLAD™ EN04 - Secret Fixed: is suitable for large size or heavy weight cladding.

Download PDF for window, door and wall abutment plan views, sections and details.

CAD Download - High Pressure Laminate Support - EN05-FF

High Pressure Laminate Support - EN05-FF

ENCLAD™ EN05-FF - Secret Fixed: is suitable where floor to floor spans are required (i.e. non-load bearing walls).

Download PDF for window, door and wall abutment plan views, sections and details.

CAD Download - Terracotta Vertically Laid

Terracotta Vertically Laid

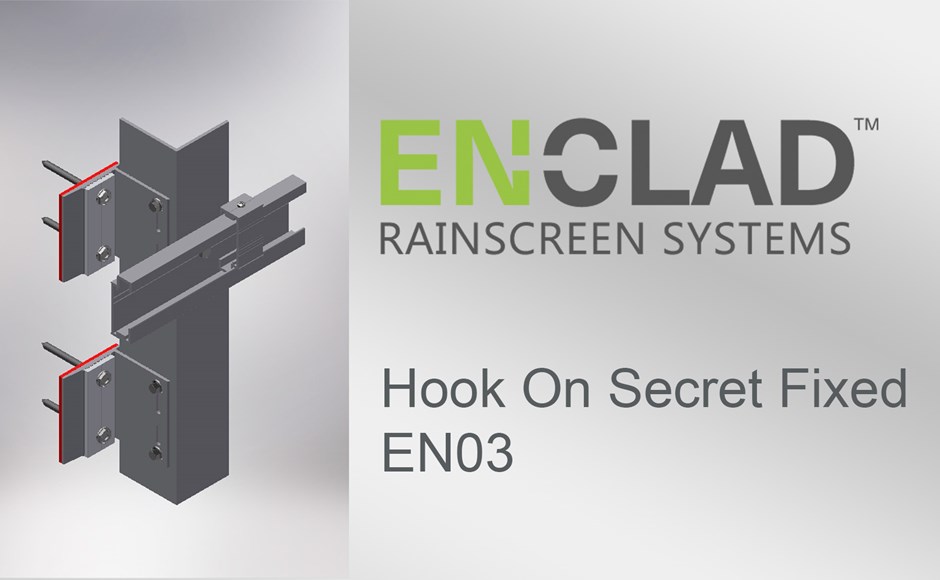

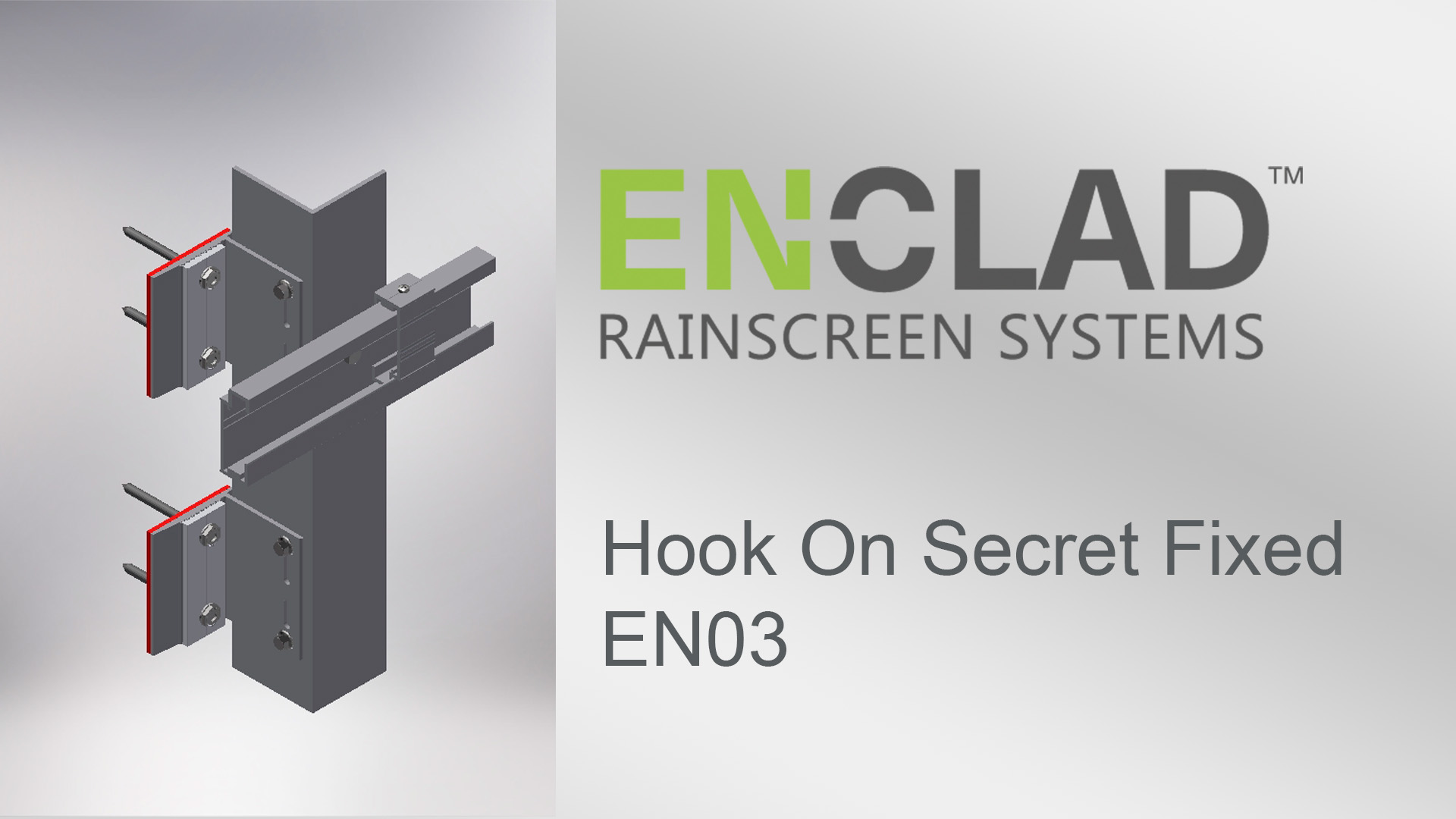

ENCLAD™ EN03 - Hook On Secret Fixed: suitable for medium size or medium weight cladding.

Download PDF for window, door and wall abutment plan views, sections and details.

CAD Download - Terracotta Horizontally Laid

Terracotta Horizontally Laid

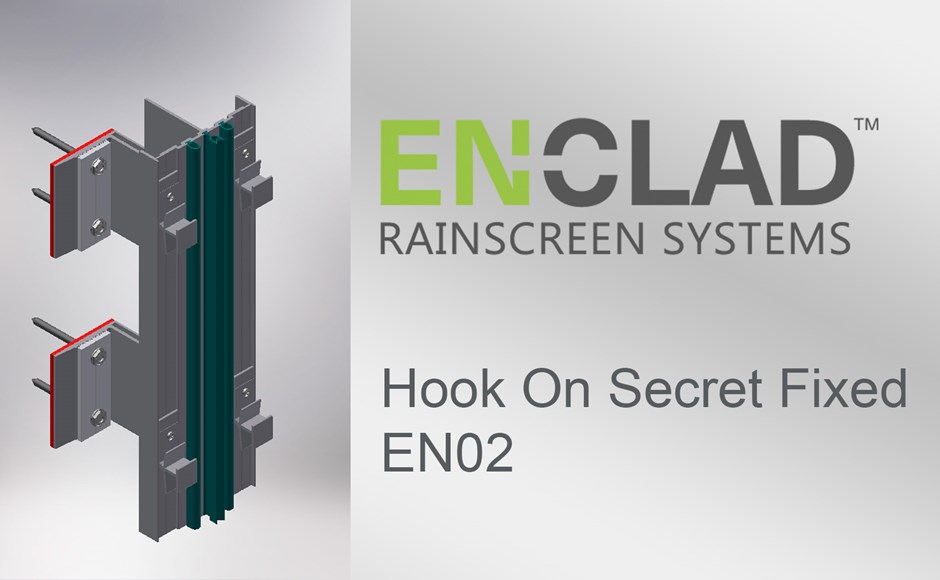

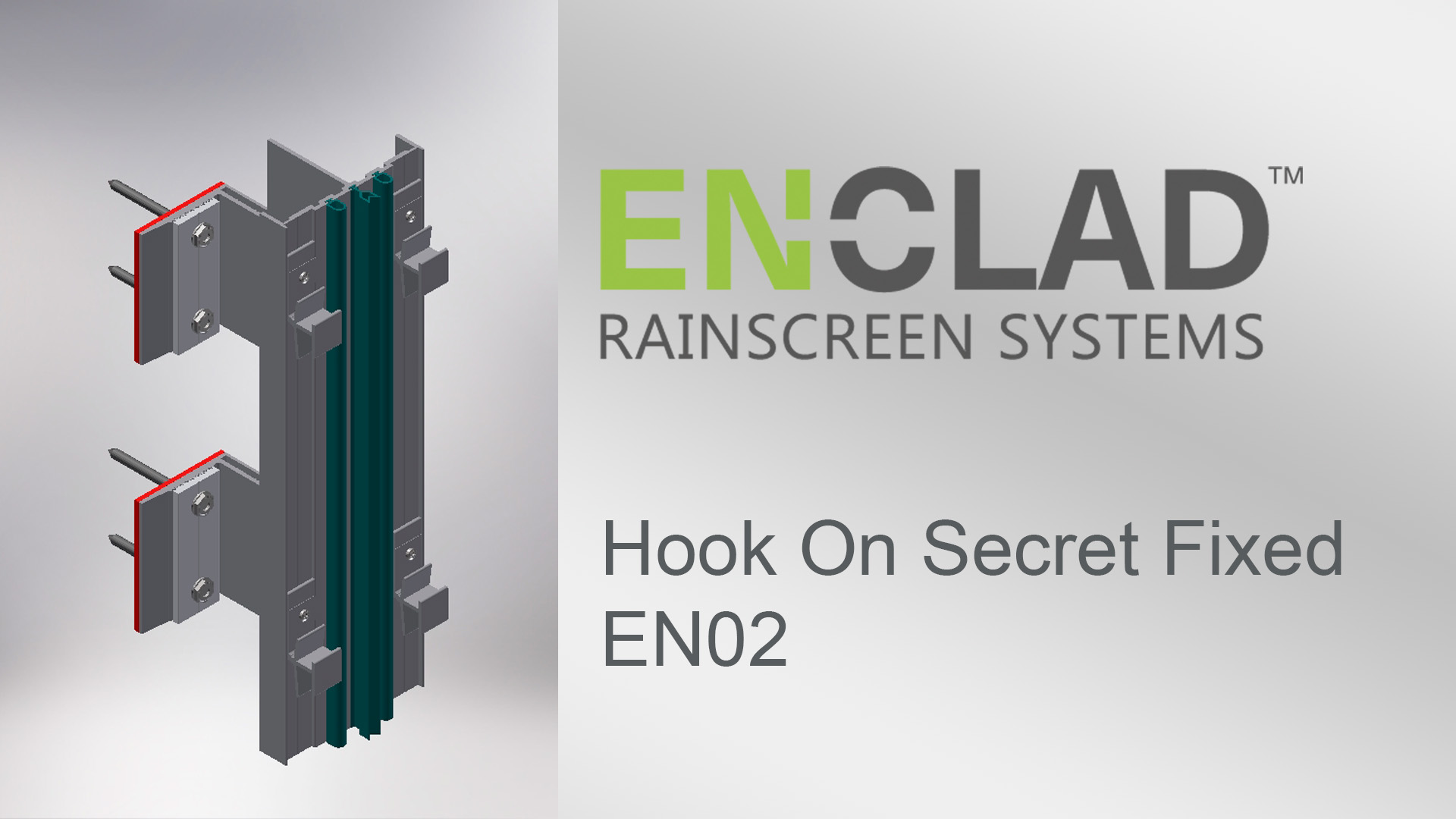

ENCLAD EN02 - Hook On Secret Fixed: suitable for horizontally laid Terracotta tiles.

Download PDF for window, door and wall abutment plan views, sections and details.

CAD Download - Porcelain Tiles Cladding Support - EN03

Porcelain Tiles Cladding Support - EN03

ENCLAD™ EN03 - Hook On Secret Fixed: suitable for medium size or medium weight cladding.

Download PDF showing window, door and wall abutment plan views, sections and details.

CAD Download - Porcelain Tiles Cladding Support - EN05-FF

Porcelain Tiles Cladding Support - EN05-FF

ENCLAD™ EN05-FF - Hook On Secret Fixed: suitable where floor to floor spans are required (i.e. non-load bearing walls).

Download PDF showing window, door and wall abutment plan views, sections and details.

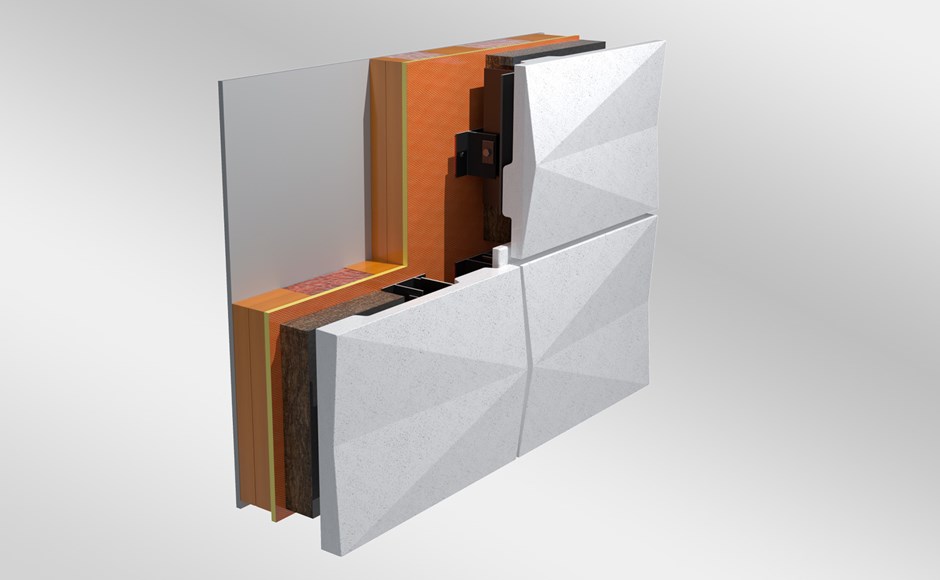

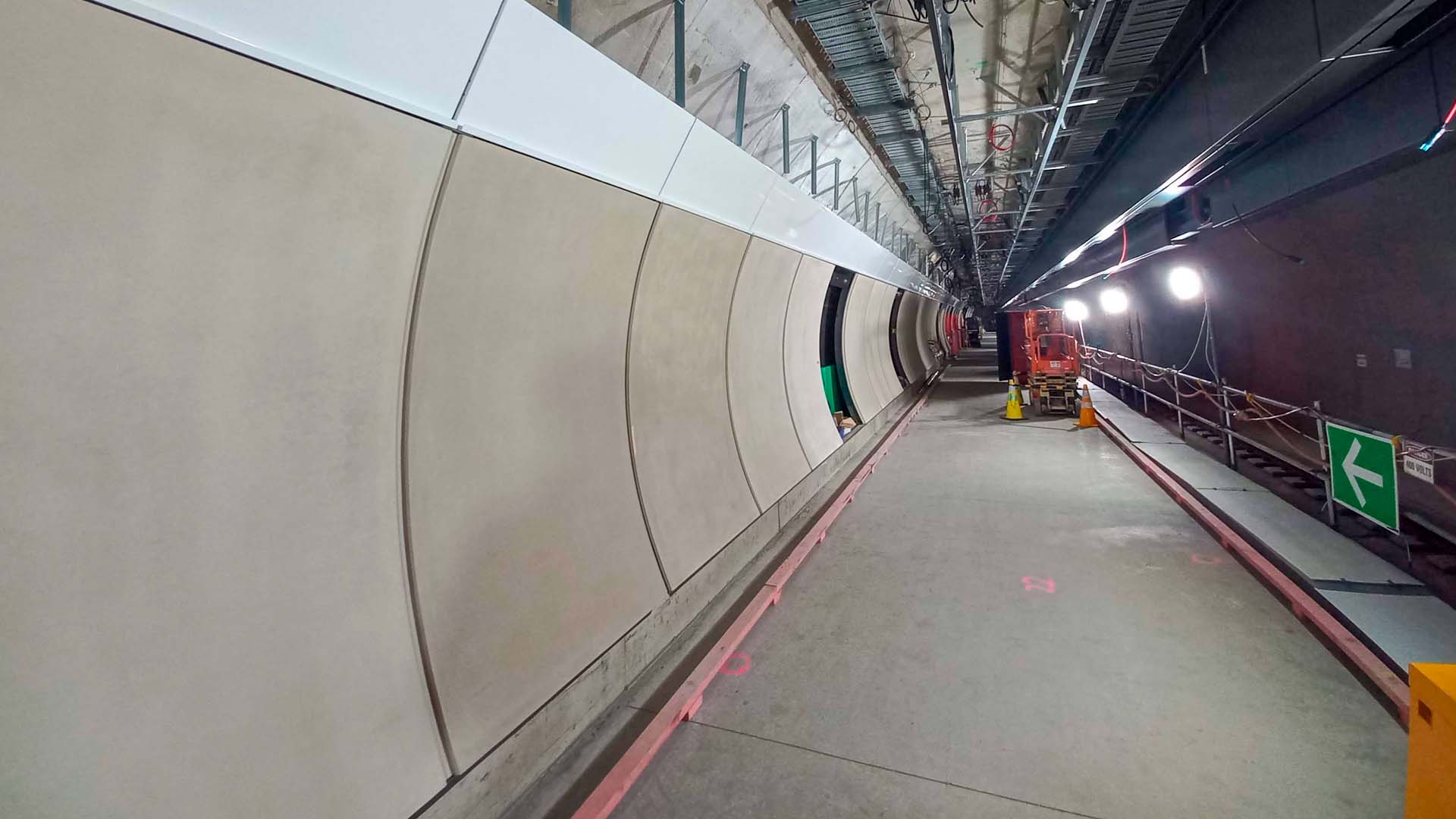

CAD Download - GRC Cladding Support - EN06

GRC Cladding Support - EN06

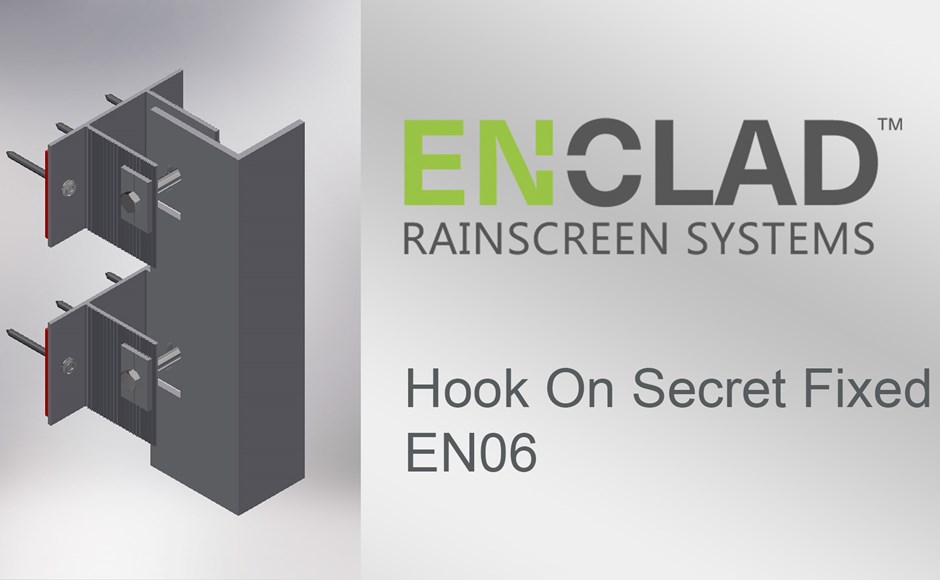

ENCLAD™ EN06 - Hook On Secret Fixed: suitable for large sized or heavy weight cladding, where minimal cavities are permitted.
